Description
Yaesu radio for sale at RADIOWORLD. This used Yaesu FTDX10 is a high-performance HF/50MHz Hybrid SDR transceiver designed for amateur radio operators who demand advanced receiver performance, flexible operating features, and compact construction. With 100W output power, sophisticated digital signal processing, advanced filtering, and a 5-inch colour touchscreen, the FTDX10 provides a powerful platform for DXing, contesting, and everyday HF amateur radio operation.
Developed using technology derived from Yaesu’s flagship FTDX101 series, the Yaesu FTDX10 combines direct sampling SDR technology with a first IF roofing filter and Hybrid SDR architecture. This design provides strong receiver performance, excellent close-in dynamic range, and effective handling of adjacent signals, making it well suited to challenging HF operating conditions.
Advanced Hybrid SDR Technology
The FTDX10 uses Yaesu’s Hybrid SDR architecture, combining Narrow Band SDR technology with Direct Sampling SDR technology. This approach is designed to provide excellent receiver performance while maintaining the hands-on controls expected from a traditional amateur radio transceiver.
The radio also incorporates a 9MHz first IF and selectable roofing filters of 12kHz, 3kHz, and 600Hz. These filtering options allow operators to optimize the receiver for different operating conditions, including crowded bands, weak-signal reception, DXing, and contest operation.
100W HF and 50MHz Operation
The Yaesu FTDX10 covers the amateur HF bands and 50MHz, with up to 100W output power. Its versatile operating modes include SSB, CW, AM, FM, RTTY, PSK, and C4FM digital operation.
With its combination of RF performance, DSP processing, and flexible filtering, the FTDX10 is suitable for a wide range of amateur radio applications, from everyday HF communication to long-distance DX and contesting.
Yaesu radio for sale with 5-Inch Colour Touchscreen

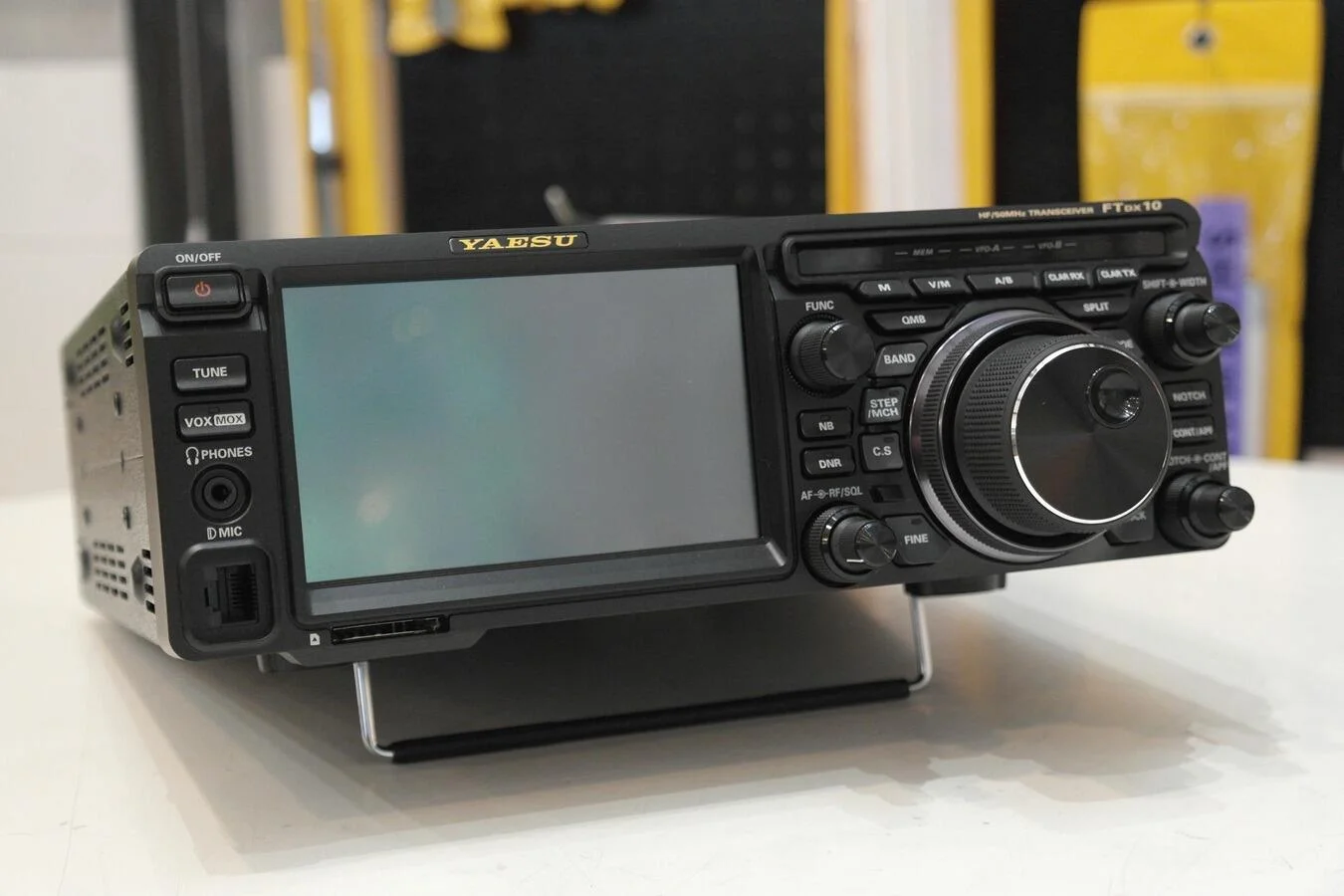

The FTDX10 features a large 5-inch full-colour TFT touchscreen that provides access to important operating functions and radio information. The display includes a real-time spectrum scope and waterfall, allowing operators to visually monitor activity across the band.
Yaesu’s 3DSS (3D Spectrum Stream) technology provides an additional way to visualize band activity, helping operators identify signals and activity while tuning across the HF spectrum.
Yaesu radio for sale with advanced DSP and Noise Reduction
The FTDX10 incorporates advanced IF DSP processing, digital noise reduction, and notch filtering to help improve reception in challenging RF environments. Its high-speed digital processing provides operators with flexible tools for managing unwanted signals and optimizing receiver performance.
The radio also features a low-phase-noise oscillator designed to support clean signal reproduction and strong overall receiver performance.
Built-In Automatic Antenna Tuner
A built-in 15-band automatic antenna tuner provides convenient antenna matching for compatible antenna systems. The tuner includes memory functionality, helping simplify operation when returning to previously used frequencies.
The FTDX10 also supports external antenna-tuning solutions where required, providing additional flexibility for different station configurations.
MPVD Multi-Purpose VFO Encoder
The MPVD Multi-Purpose VFO Encoder provides precise frequency control while also offering access to additional operating functions. This gives operators tactile control alongside the touchscreen interface and helps maintain the traditional operating experience of a dedicated amateur radio transceiver.
Connectivity and Recording

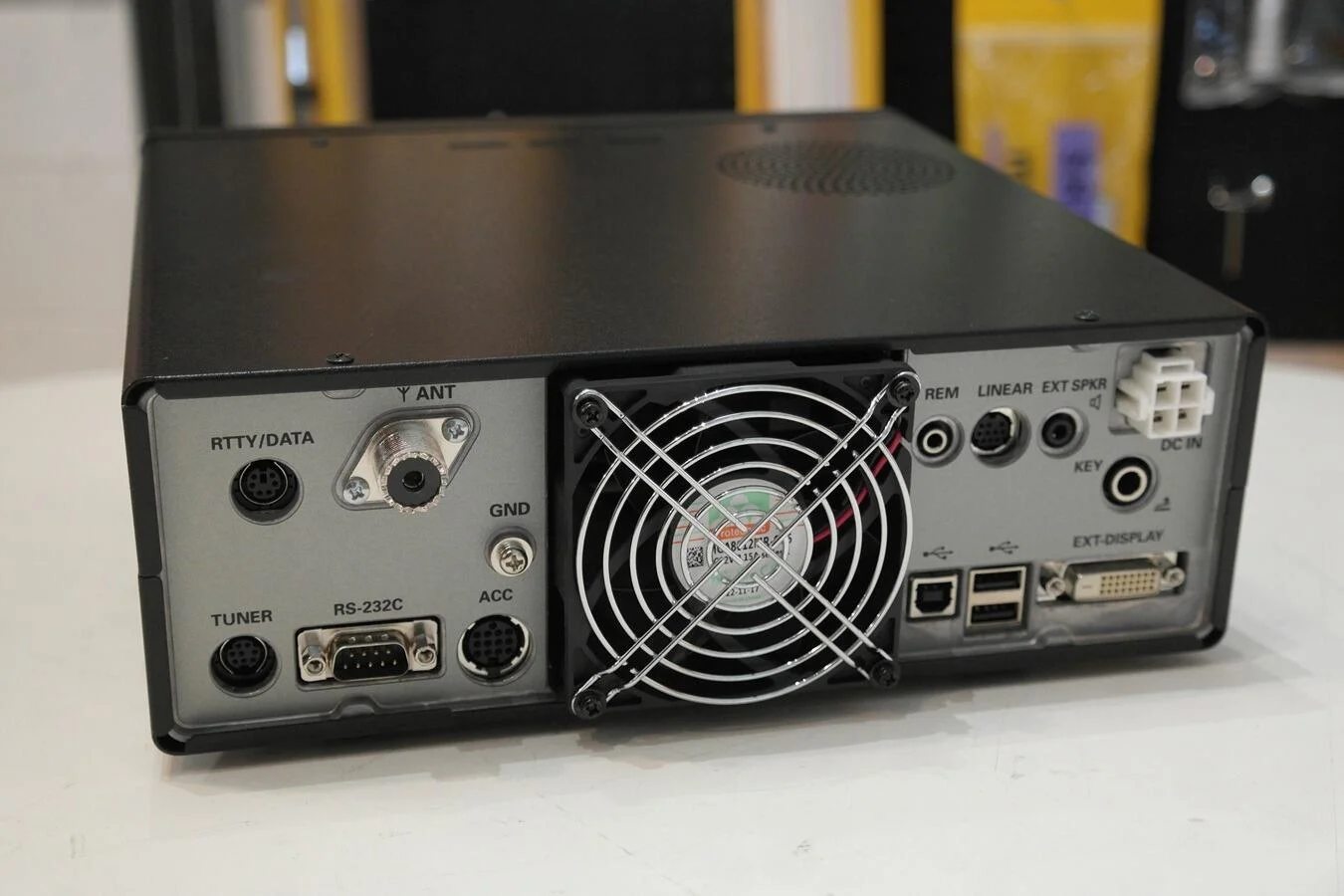

The Yaesu FTDX10 provides USB connectivity for applications such as CAT control, computer integration, audio functions, and digital amateur radio modes. An SD card slot provides additional storage functionality for recording, playback, and supported firmware operations.
These features make the FTDX10 suitable for modern computer-connected amateur radio stations as well as traditional standalone operation.

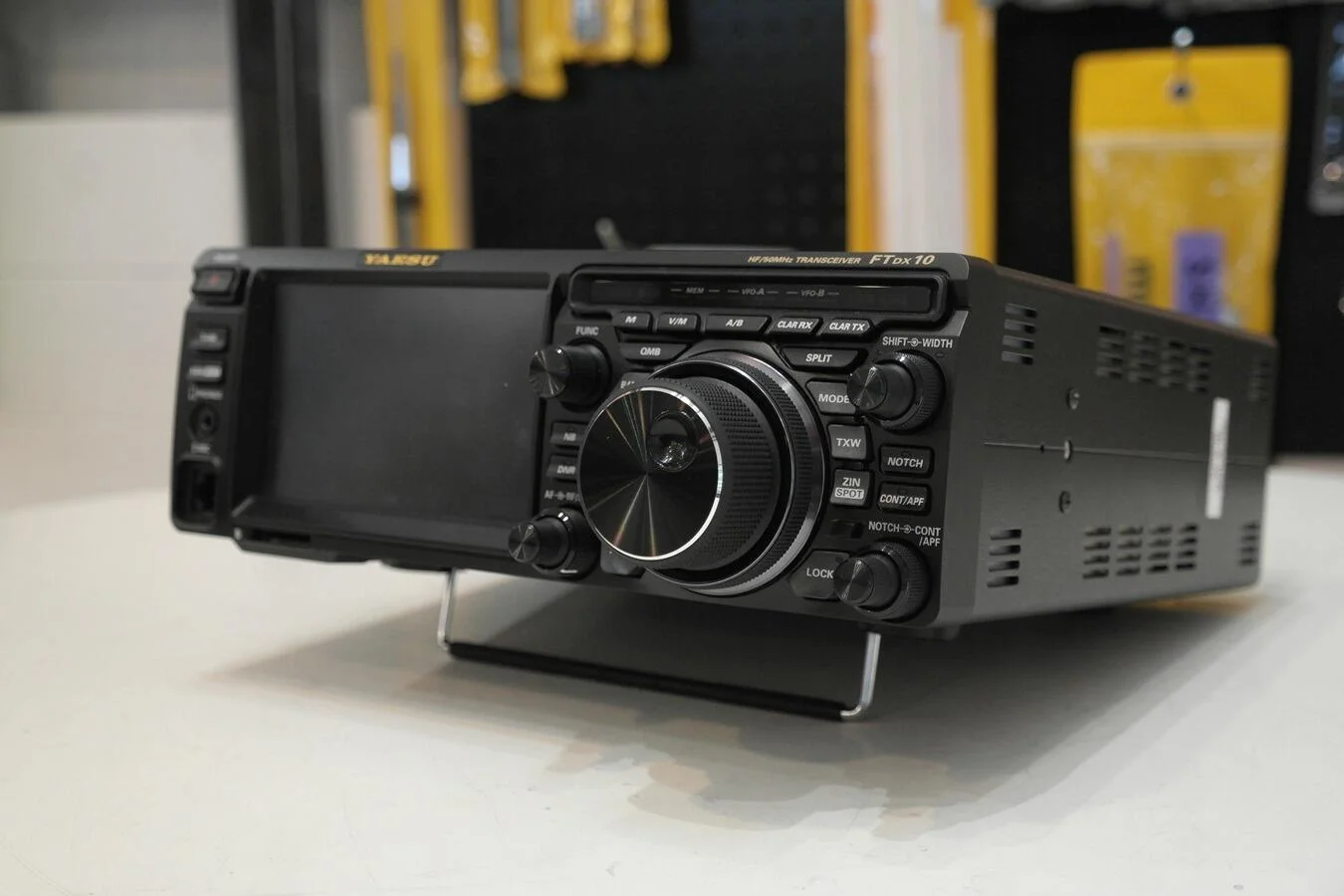

This is a second-hand Yaesu FTDX10 in excellent used condition. The unit has been fully tested and confirmed operational.
- Tested and fully functional
- Excellent operational condition
- Clear 5-inch colour touchscreen
- Transmit and receive functions confirmed
- Cosmetic condition consistent with careful previous use
Key Features
- Yaesu FTDX10 HF/50MHz SDR transceiver
- Hybrid SDR architecture
- Direct Sampling SDR technology
- 100W output power
- 1.8–54MHz frequency coverage
- 9MHz first IF
- 12kHz / 3kHz / 600Hz roofing filters
- 5-inch colour TFT touchscreen
- Real-time spectrum scope and waterfall
- 3DSS spectrum display
- Advanced IF DSP processing
- Digital noise reduction and notch filtering
- Built-in 15-band automatic antenna tuner
- MPVD Multi-Purpose VFO Encoder
- USB connectivity
- SD card support
- SSB, CW, AM, FM, RTTY, PSK and C4FM modes
- Second-hand and fully tested
Technical Specifications
Model: Yaesu FTDX10
Type: HF/50MHz Hybrid SDR Transceiver
Frequency Coverage: 1.8–54MHz
Output Power: Up to 100W
Modes: SSB, CW, AM, FM, RTTY, PSK, C4FM
Receiver Architecture: Hybrid SDR with IF roofing filters
First IF: 9MHz
Roofing Filters: 12kHz / 3kHz / 600Hz
Display: 5-inch colour TFT touchscreen
Spectrum Display: Real-time spectrum scope and waterfall
Antenna Tuner: Built-in automatic 15-band tuner
Connections: USB, LAN, SD card
Power Supply: 13.8V DC ±10%
Dimensions: 266 × 91 × 263mm
Weight: Approximately 5.9kg
Condition: Second-hand, tested and fully functional
Yaesu radio for sale
If you are searching for a Yaesu radio for sale , a used Yaesu transceiver, or a high-performance HF/50MHz SDR transceiver, the FTDX10 offers a powerful combination of modern SDR technology, advanced receiver filtering, touchscreen control, and 100W output.
Its compact design makes it suitable for dedicated home stations, DX stations, contest setups, and operators who want advanced Yaesu ham radio equipment without moving to a larger flagship base station.
