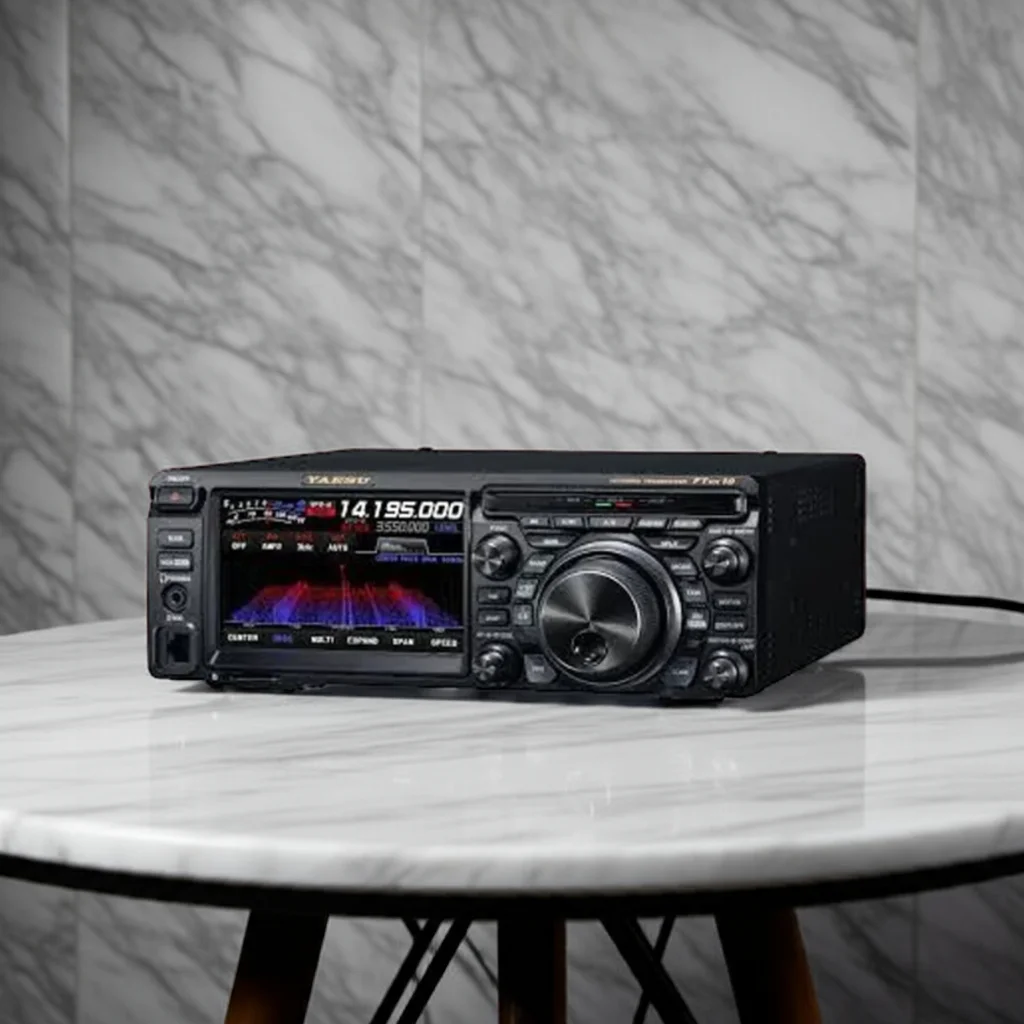

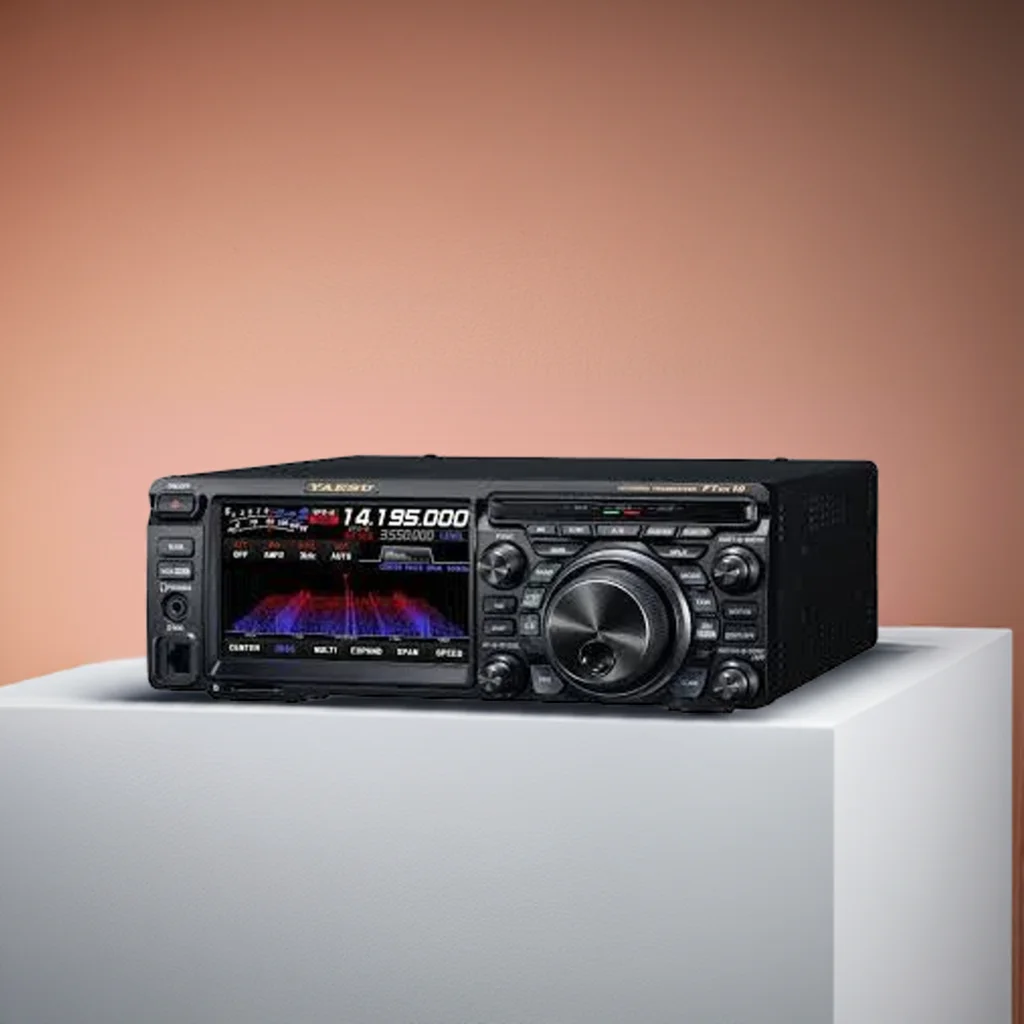

YAESU FTDX10 HF/50MHZ HYBRID SDR TRANSCEIVER – 100W
The Yaesu FTDX10 is a high-performance HF/50MHz 100W SDR transceiver designed for amateur radio operators who demand advanced receiver technology, excellent signal handling, and precise spectrum monitoring. Built around Yaesu’s advanced Hybrid SDR architecture, the FTDX10 combines Narrow-Band SDR and Direct Sampling SDR technologies to provide a powerful and flexible operating experience.
Designed for serious HF and 50MHz amateur radio operation, the Yaesu FTDX10 transceiver combines advanced digital signal processing, precision filtering, a real-time spectrum scope, a high-resolution touchscreen, and a high-speed automatic antenna tuner. These features make it suitable for DXing, contesting, general HF communication, and demanding amateur radio applications.
Yaesu FTDX10 Hybrid SDR Architecture
At the heart of the FTDX10 is its Hybrid SDR architecture, which combines Narrow-Band SDR technology with Direct Sampling SDR technology. This design provides advanced signal-processing capabilities while maintaining excellent receiver performance.
The transceiver uses a down-conversion receiver with a 9MHz first IF, together with precision crystal roofing filters. These filters provide high selectivity and help the receiver separate signals effectively in busy operating environments.
For operators who spend considerable time on the HF bands, this combination of receiver architecture and filtering provides a powerful platform for monitoring and working signals.
High-Performance HF/50MHz Receiver
The Yaesu FTDX10 HF/50MHz transceiver is designed to provide excellent dynamic range and signal-handling performance. Its technical specifications include an RMDR of 116dB, BDR of 141dB, and IMDR of 109dB at 14MHz with 2kHz spacing.
The radio also incorporates a 250MHz High-Resolution Direct Digital Synthesiser (HRDDS) designed to provide extremely low phase-noise performance of –145dB or better.
Together, these technologies help make the FTDX10 a capable choice for operators working in demanding HF environments where receiver performance and signal separation are important.
Real-Time Spectrum Scope and 3DSS Display
One of the most useful features of the Yaesu FTDX10 SDR transceiver is its Digital Processing Spectrum Scope. The real-time spectrum display allows operators to monitor activity across the band and quickly identify signals.
The FTDX10 features a bright 5-inch full-colour TFT touchscreen with Yaesu’s 3DSS (3-Dimensional Spectrum Stream) display technology. The touchscreen provides an intuitive interface for accessing important operating functions and monitoring spectrum activity.
The combination of the spectrum scope, waterfall-style visual information, and touchscreen controls gives the FTDX10 a modern operating experience while retaining dedicated physical controls.
Advanced IF DSP and QRM Reduction
The FTDX10 incorporates advanced IF DSP technology designed to provide effective filtering, noise reduction, and QRM reduction. This gives operators additional control over received signals, particularly when operating in crowded or challenging HF conditions.
Digital processing features can be adjusted to suit different operating situations, making the FTDX10 suitable for both everyday amateur radio communication and more demanding DX or contest environments.
Precision Crystal Roofing Filters
The precision crystal roofing filters used in the FTDX10 receiver are designed to provide excellent selectivity and a sharp shape factor.
These filters work with the radio’s down-conversion receiver architecture to help manage strong signals and improve signal separation. For operators interested in DXing and contesting, receiver selectivity can be particularly important when several signals are present close together.
Multi-Purpose VFO Outer Dial
The front panel of the Yaesu FTDX10 includes a Multi-Purpose VFO Outer Dial that provides fast and precise tuning control.
The dedicated controls complement the touchscreen interface, allowing operators to quickly adjust frequency and access important operating functions without relying entirely on touch controls.
This combination of physical controls and touchscreen operation provides flexibility for different operating preferences.
100W RF Output Power
The Yaesu FTDX10 provides 100W RF output power across HF and 50MHz operation. This makes it suitable for a wide range of amateur radio applications, from everyday communication and ragchewing to DXing and contest operation.
Its 100W output, advanced receiver architecture, and DSP capabilities make the FTDX10 a versatile addition to a home or portable amateur radio station.
High-Speed Automatic Antenna Tuner
The FTDX10 includes a high-speed automatic antenna tuner designed to provide convenient antenna matching. The tuner also includes memory functionality, allowing frequently used antenna tuning information to be retained for quicker operation.
This feature can simplify station operation and make it more convenient to move between commonly used frequencies and bands.
Remote Operation Capability
The Yaesu FTDX10 can support remote operation through the optional SCU-LAN10 interface. This provides an option for operators who want to integrate their transceiver into a network-connected amateur radio station.
Remote operating capability can be useful for operators who want additional flexibility when accessing their station or integrating the radio with a computer-based setup.
Multiple Operating Modes
The Yaesu FTDX10 supports a variety of amateur radio operating modes, including:
- SSB
- CW
- AM
- FM
- Digital modes
This multi-mode capability allows operators to use the FTDX10 for different amateur radio activities without requiring separate equipment for each operating mode.
Key Features
- Yaesu FTDX10 HF/50MHz SDR transceiver
- 100W RF output power
- Advanced Hybrid SDR architecture
- Narrow-Band SDR and Direct Sampling SDR technology
- HF and 50MHz coverage
- Down-conversion receiver with 9MHz first IF
- Precision crystal roofing filters
- 116dB RMDR
- 141dB BDR
- 109dB IMDR at 14MHz/2kHz spacing
- 250MHz High-Resolution Direct Digital Synthesiser
- Phase noise of –145dB or better
- 5-inch full-colour TFT touchscreen
- 3DSS spectrum display
- Real-time Digital Processing Spectrum Scope
- 15 high-performance band-pass filter stages
- Advanced IF DSP
- QRM and noise reduction
- Multi-Purpose VFO Outer Dial
- High-speed automatic antenna tuner
- Antenna tuner memory
- Optional SCU-LAN10 remote operation
- SSB, CW, AM, FM, and digital modes
Yaesu FTDX10 for DXing and Contesting
The Yaesu FTDX10 is well suited to amateur radio operators who enjoy DXing and contesting. Its combination of advanced receiver technology, precision roofing filters, high dynamic range, spectrum monitoring, and DSP processing provides a comprehensive platform for serious HF operation.
The real-time spectrum scope makes it easier to observe band activity, while the high-performance receiver architecture provides the tools needed for working signals in busy HF environments.
Ideal for Modern Amateur Radio Stations
The compact yet feature-rich design of the Yaesu FTDX10 100W SDR transceiver makes it suitable for modern amateur radio stations. Its touchscreen interface, dedicated VFO controls, spectrum scope, automatic antenna tuner, and optional remote operation provide flexibility for different station configurations.
Whether you are building a dedicated HF station, upgrading your existing equipment, participating in DX activities, or looking for an advanced SDR transceiver for contesting, the FTDX10 provides a comprehensive set of features.
Yaesu-ftdx10 Technical Specifications
- Model: Yaesu FTDX10
- Type: HF/50MHz Hybrid SDR Transceiver
- RF Output: 100W
- Architecture: Hybrid SDR
- Receiver: Down-conversion with 9MHz first IF
- Roofing Filters: Precision crystal filters
- RMDR: 116dB
- BDR: 141dB
- IMDR: 109dB at 14MHz/2kHz spacing
- Local Oscillator: 250MHz HRDDS
- Phase Noise: –145dB or better
- Display: 5-inch full-colour TFT touchscreen
- Spectrum Scope: Digital Processing Spectrum Scope
- 3DSS: Supported
- Band-Pass Filters: 15 stages
- DSP: IF DSP with QRM and noise reduction
- Antenna Tuner: High-speed automatic tuner with memory
- Remote Operation: Optional SCU-LAN10
- Modes: SSB, CW, AM, FM, and digital modes
- Coverage: HF + 50MHz
Why Choose the Yaesu FTDX10?
The Yaesu FTDX10 brings together advanced SDR technology, high-performance receiver design, intuitive controls, and modern spectrum monitoring in a compact 100W transceiver. Its Hybrid SDR architecture, precision crystal roofing filters, advanced DSP, real-time spectrum scope, 3DSS display, and automatic antenna tuner make it a versatile choice for amateur radio operators.
For operators searching for a Yaesu FTDX10 for sale, a Yaesu HF transceiver, a 50MHz SDR radio, or a high-performance ham radio transceiver, the FTDX10 offers a feature-rich platform for modern amateur radio operation.
