Description

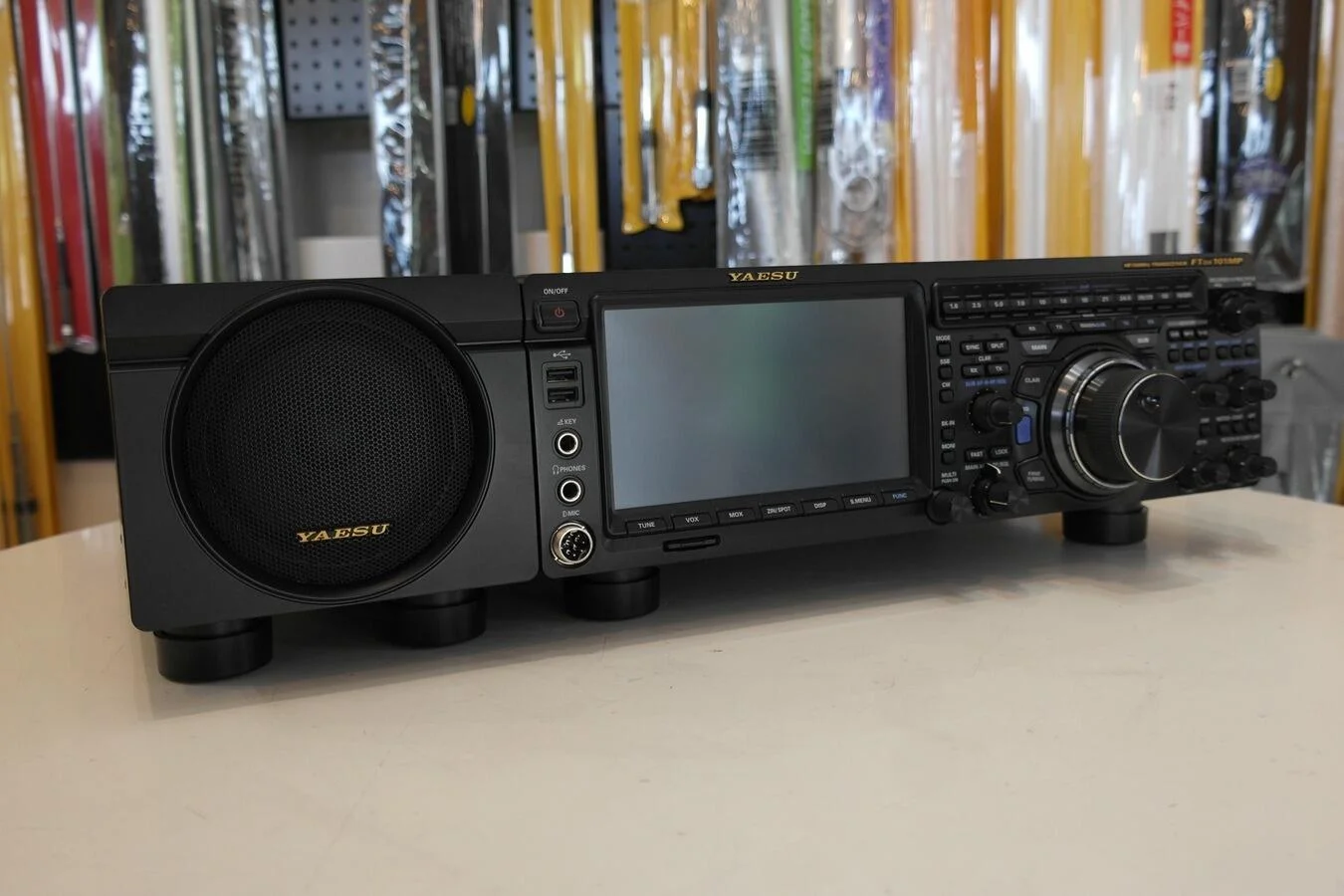

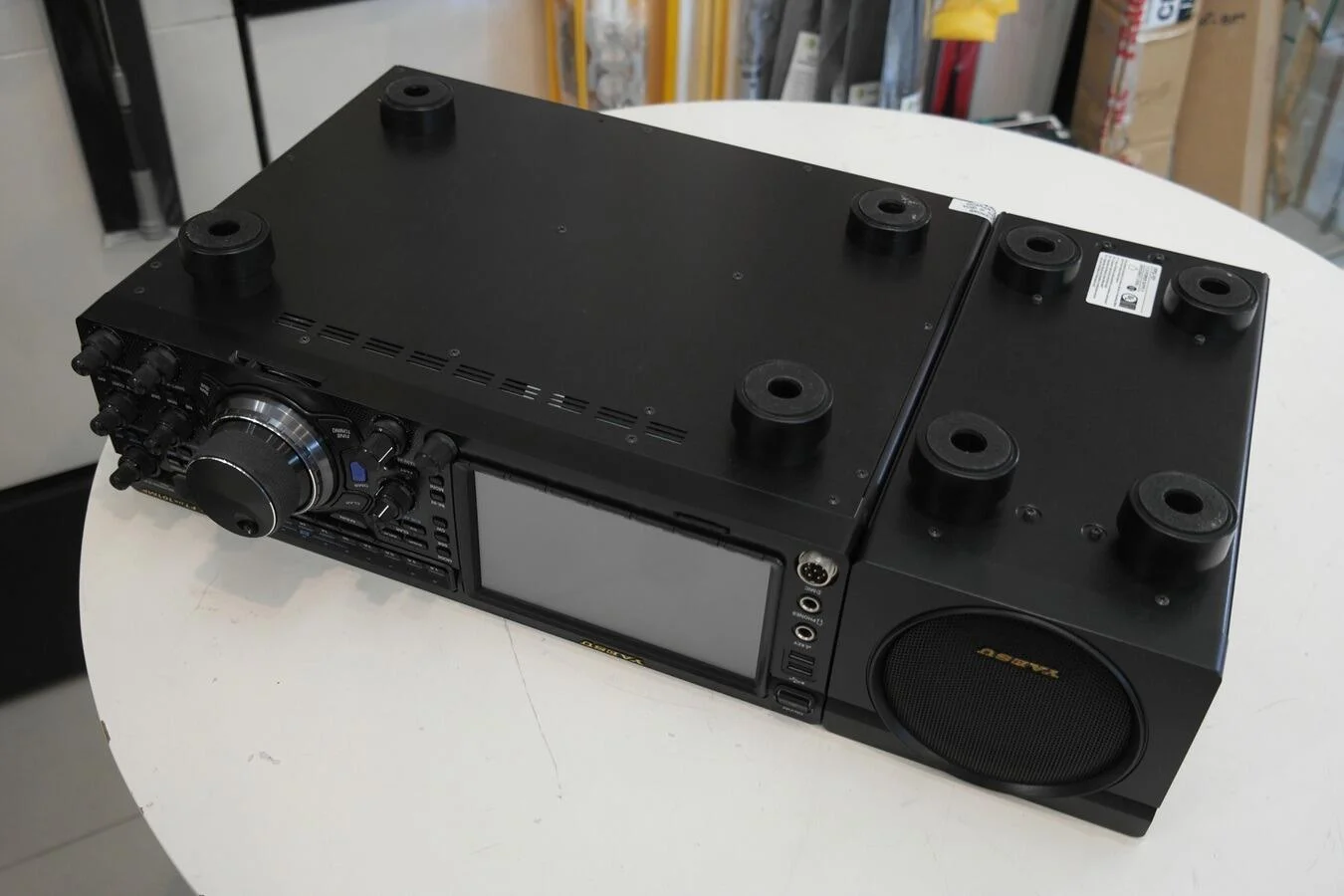

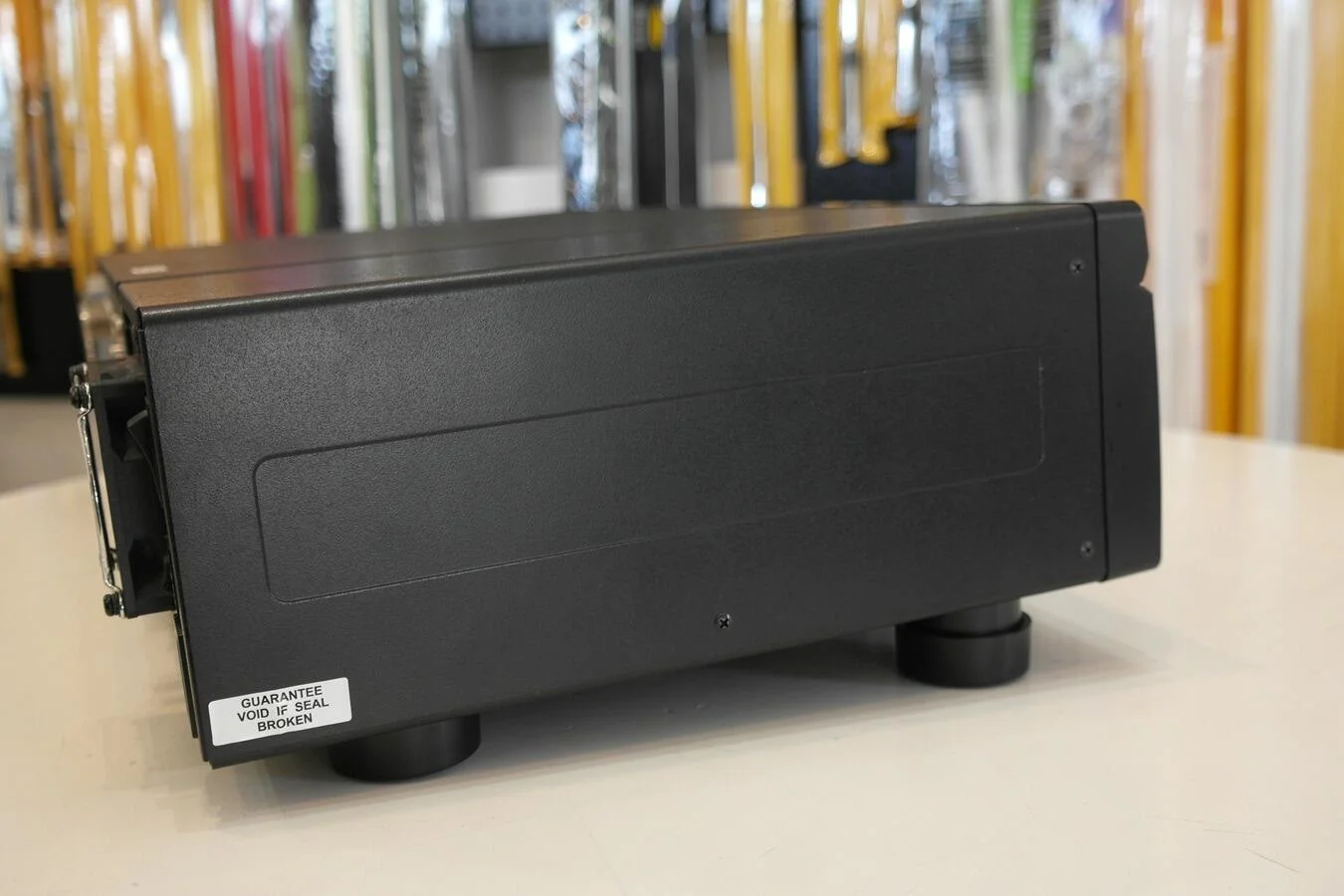

ham radio radio Yaesu FTDX101D is a high-performance 100W HF/50MHz Hybrid SDR transceiver designed for amateur radio operators who require advanced receiver technology, precise signal filtering, excellent dynamic range, and flexible operating controls. Combining Narrow-Band SDR and Direct Sampling SDR architecture, the Yaesu FTDX101D provides powerful performance for HF communication, 6-meter operation, DXing, contesting, weak-signal work, and demanding amateur radio applications.
Designed as a premium Yaesu ham radio transceiver, the FTDX101D incorporates advanced digital signal processing, high-precision crystal roofing filters, dual-receiver capability, and a sophisticated receiver architecture. These features allow operators to separate signals effectively, reduce unwanted interference, and maintain clear reception in busy HF band conditions.

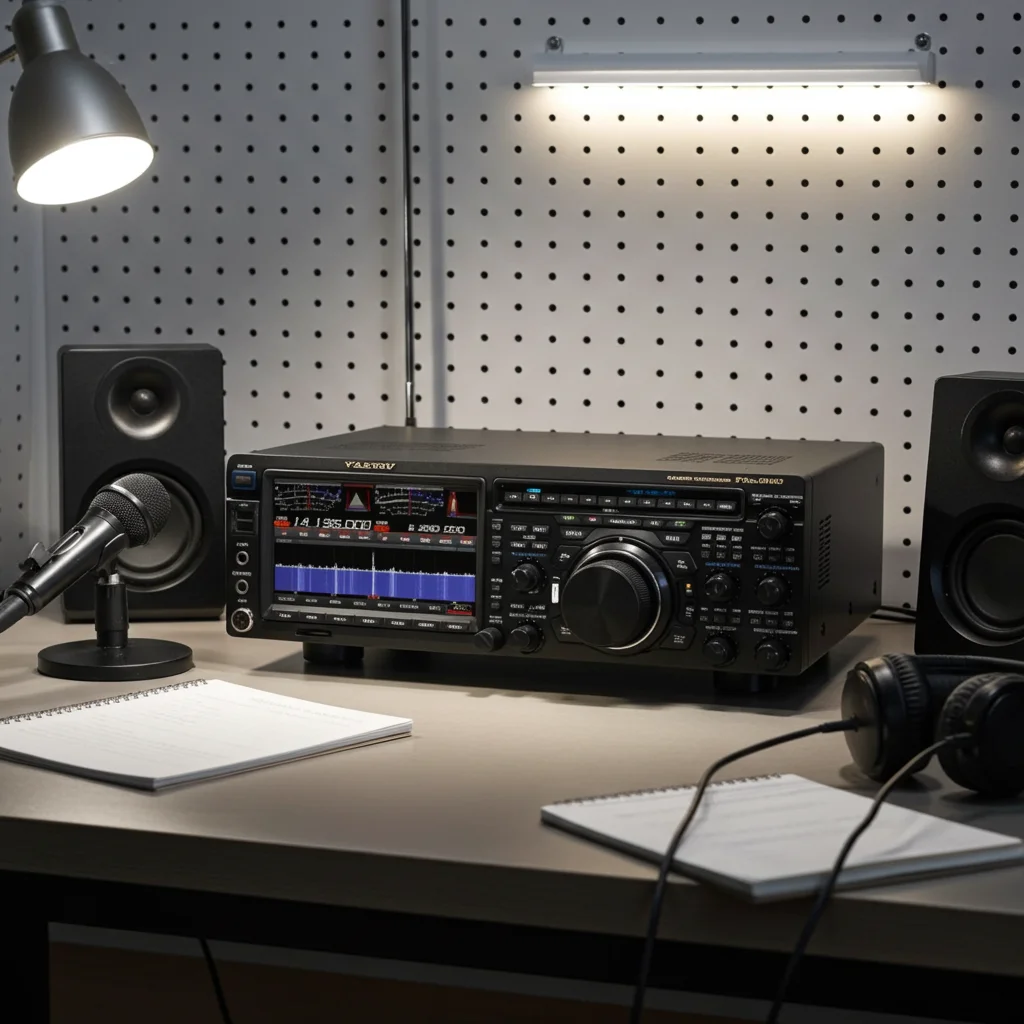

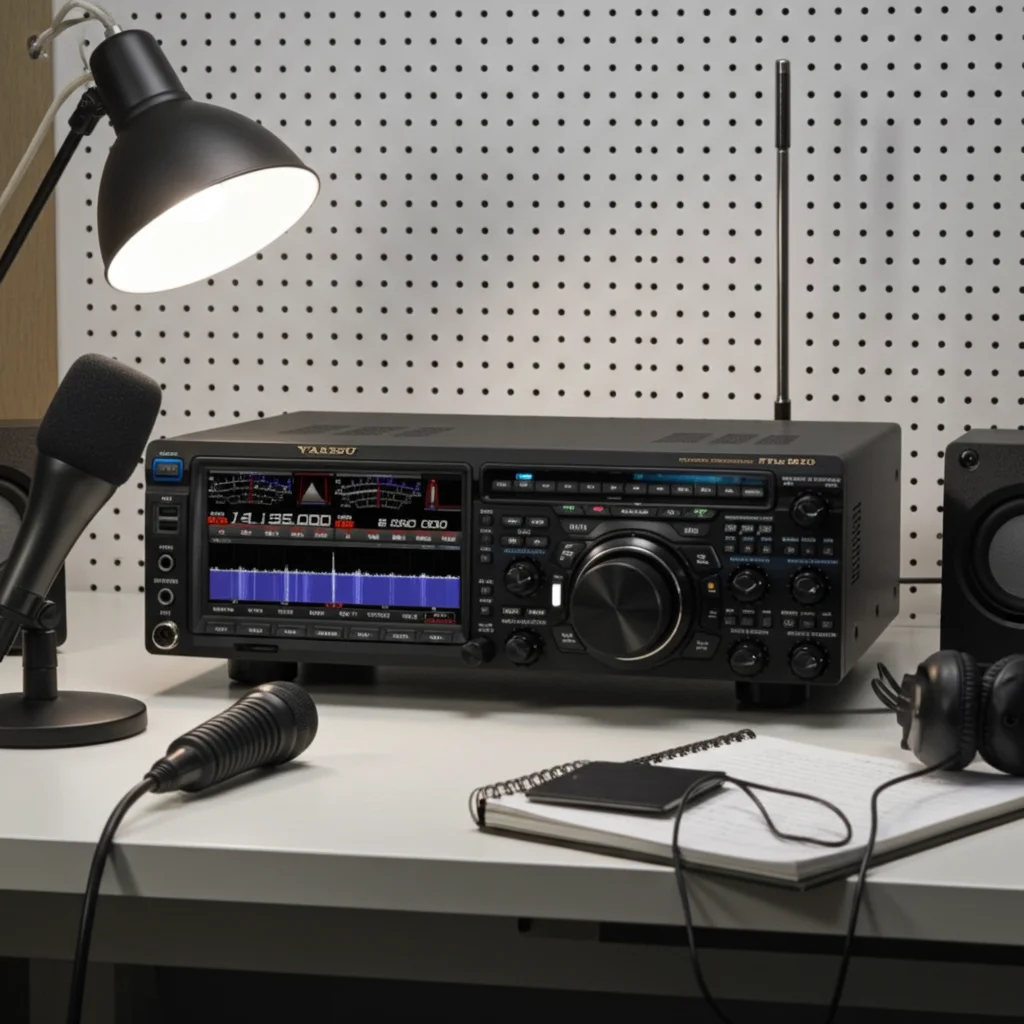

The large, high-resolution colour TFT touchscreen provides an intuitive operating experience while giving users access to a real-time spectrum scope and waterfall display. The spectrum display makes it easier to monitor activity across the band, identify signals, and quickly locate stations. Precision VFO controls, multifunction dials, and a customisable front-panel layout provide convenient control during everyday operation as well as demanding contest environments.
For operators searching for a Yaesu FTDX101D for sale, this HF/50MHz transceiver offers a combination of modern SDR technology and traditional high-quality amateur radio controls. Its 100W transmitter, advanced IF DSP, selectable roofing filters, dual receivers, automatic antenna tuner, and comprehensive connectivity make it suitable for both experienced operators and serious amateur radio stations.
TECHNICAL SPECIFICATIONS – YAESU FTDX101D
GENERAL
- Model: Yaesu FTDX101D
- Type: HF/50MHz Hybrid SDR Transceiver
- RF Output Power: 100W HF/50MHz
- Architecture: Hybrid SDR – Narrow-Band SDR + Direct Sampling SDR
- Frequency Coverage: HF + 50MHz
- Operating Modes: SSB, CW, AM, FM, Digital
- Antenna Impedance: 50Ω
- Application: Amateur radio, HF communication, DXing, contesting, and 6-meter operation
RECEIVER
- Receiver Architecture: Down-conversion with 9MHz first IF
- Roofing Filters: High-precision selectable crystal roofing filters
- Dynamic Range: High-performance receiver architecture with strong RMDR, BDR, and IMDR characteristics
- DSP: Advanced IF DSP for digital filtering, noise reduction, and QRM suppression
- Spectrum Scope: Real-time spectrum scope and waterfall display
- Dual Receivers: Yes
- Signal Processing: Advanced digital processing for improved signal separation and reception
The advanced receiver section of the Yaesu FTDX101D HF transceiver is designed for demanding operating conditions. Its selectable roofing filters and IF DSP help operators manage strong adjacent signals and unwanted interference while maintaining clear and detailed reception.
TRANSMITTER
- RF Output: 100W
- Frequency: HF and 50MHz
- Modulation: Low-distortion, high-purity signal generation
- Cooling: Intelligent temperature-controlled cooling system
- Operating Modes: SSB, CW, AM, FM, and Digital
The 100W transmitter provides reliable output for everyday amateur radio communication, DX operation, contesting, and general HF use. The high-purity signal generation and temperature-controlled cooling system are designed to support consistent transmitter performance.
HAM RADIO RADIO WITH DISPLAY & OPERATING CONTROLS
- Display: Large high-resolution colour TFT touchscreen
- Spectrum Display: Real-time spectrum scope and waterfall
- VFO: Precision VFO controls
- Front Panel: Multifunction dials and customisable operating controls
- Interface: User-friendly touchscreen operating system
The large colour touchscreen gives the FTDX101D SDR transceiver a modern operating interface while maintaining dedicated physical controls for frequently used functions. The combination of touchscreen controls, VFO operation, and multifunction dials provides flexibility for different operating styles.
CONNECTIVITY
- USB: CAT control and digital audio interface
- LAN: Remote operation support with compatible equipment and configuration

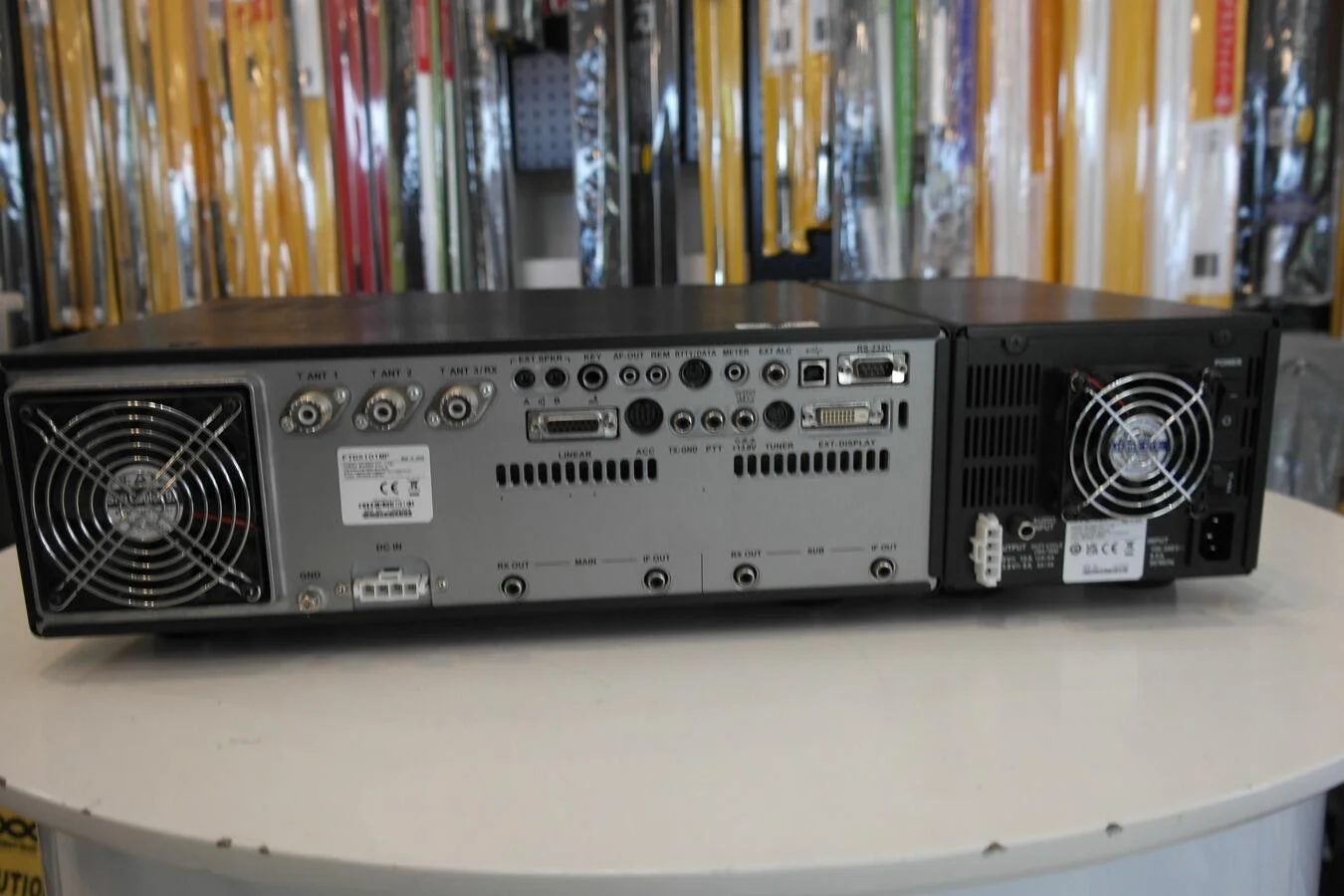

- External I/O: Key, ALC, PTT, tuner, and other station connections
- Digital Operation: Supports connection to compatible computer-based amateur radio applications
The connectivity options make the FTDX101D suitable for modern amateur radio stations where computer control, digital modes, audio interfaces, and remote operation are important.
Addtional key features
- High-speed automatic antenna tuner
- Dual-receiver capability
- Advanced IF DSP
- Selectable precision roofing filters
- Real-time spectrum scope
- Waterfall display
- Memory functions
- Precision VFO control
- Multifunction operatin
- Contest-friendly front-panel design
- Robust chassis construction
- HF and 50MHz operation
- 100W RF output
The Yaesu FTDX101D combines advanced Hybrid SDR technology with practical controls and high-performance amateur radio features. Its HF and 50MHz coverage makes it suitable for operators who want one versatile transceiver for a wide range of operating activities.
