Yaesu FT710 Field SDR Transceiver
Yaesu FT710 Field is a compact, high-performance SDR transceiver designed for amateur radio operators who value power, portability, and advanced digital signal processing. Covering HF, 50MHz, and 70MHz amateur radio bands, this versatile ham radio delivers up to 100W of RF output, making it suitable for home stations, portable operations, field use, and DX communication.
Featuring Yaesu’s advanced Hybrid SDR architecture, the FT-710 Field combines direct sampling and down-conversion technology with powerful DSP filtering. As a result, operators can enjoy excellent receiver performance, effective noise reduction, and clear signal reproduction across a wide range of operating conditions.

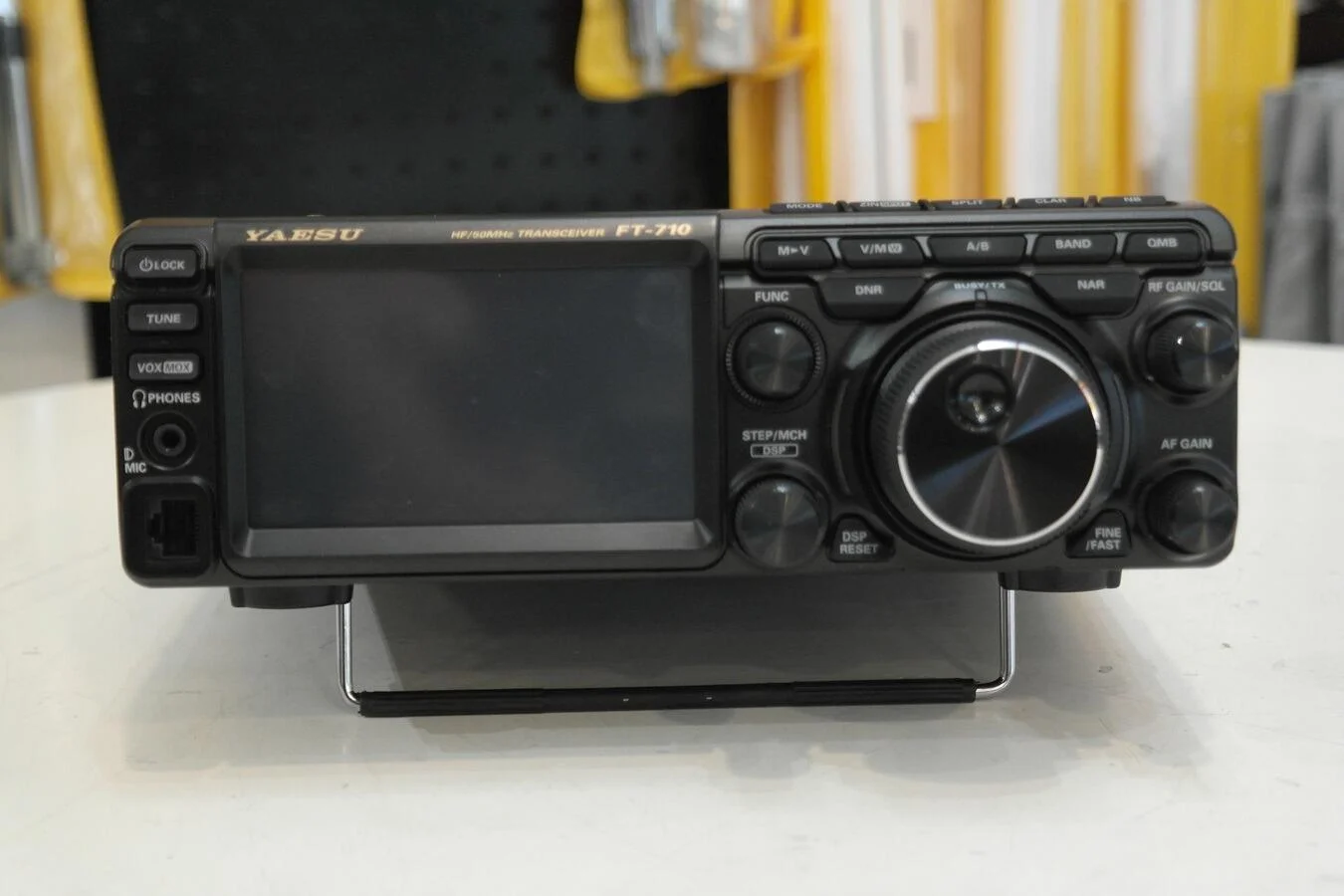

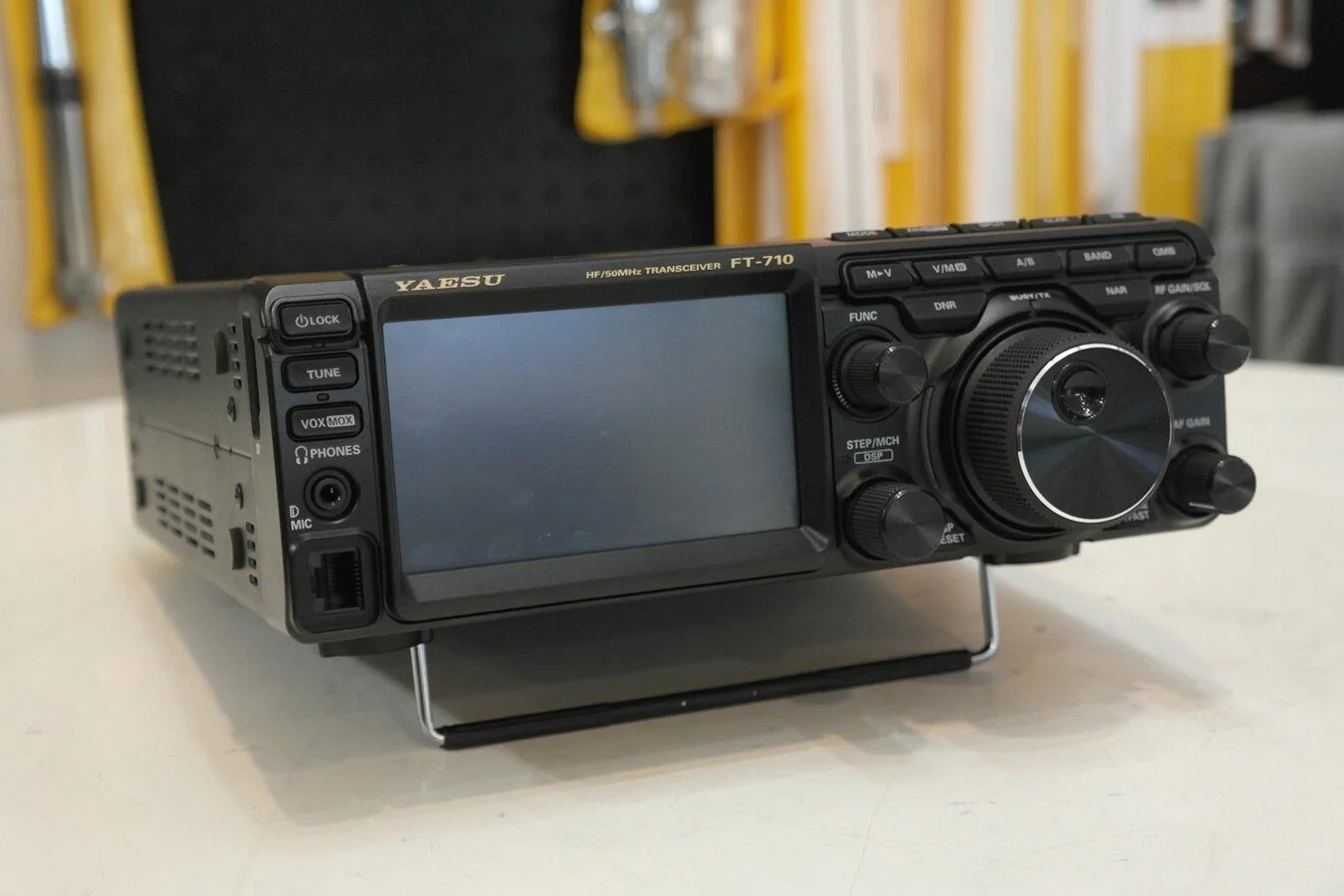

The FT-710 Field also features a bright 5-inch colour TFT touchscreen with a real-time spectrum scope and waterfall display. These features provide a clear view of signals across the band, while the 3DSS (3D Spectrum Stream) and MPVD (Multi-Purpose VFO Dial) provide intuitive control during operation.
For added convenience, the transceiver includes a built-in automatic antenna tuner with 15-band memory, helping simplify antenna matching. In addition, USB connectivity supports CAT control, audio connections, digital modes, and firmware updates.
Despite its advanced capabilities, the Yaesu FT-710 Field maintains a compact and lightweight design, making it suitable for both portable and base-station use. With support for SSB, CW, AM, FM, RTTY, PSK, and digital modes, it provides flexibility for a wide variety of amateur radio activities.
Yaesu FT710 Condition

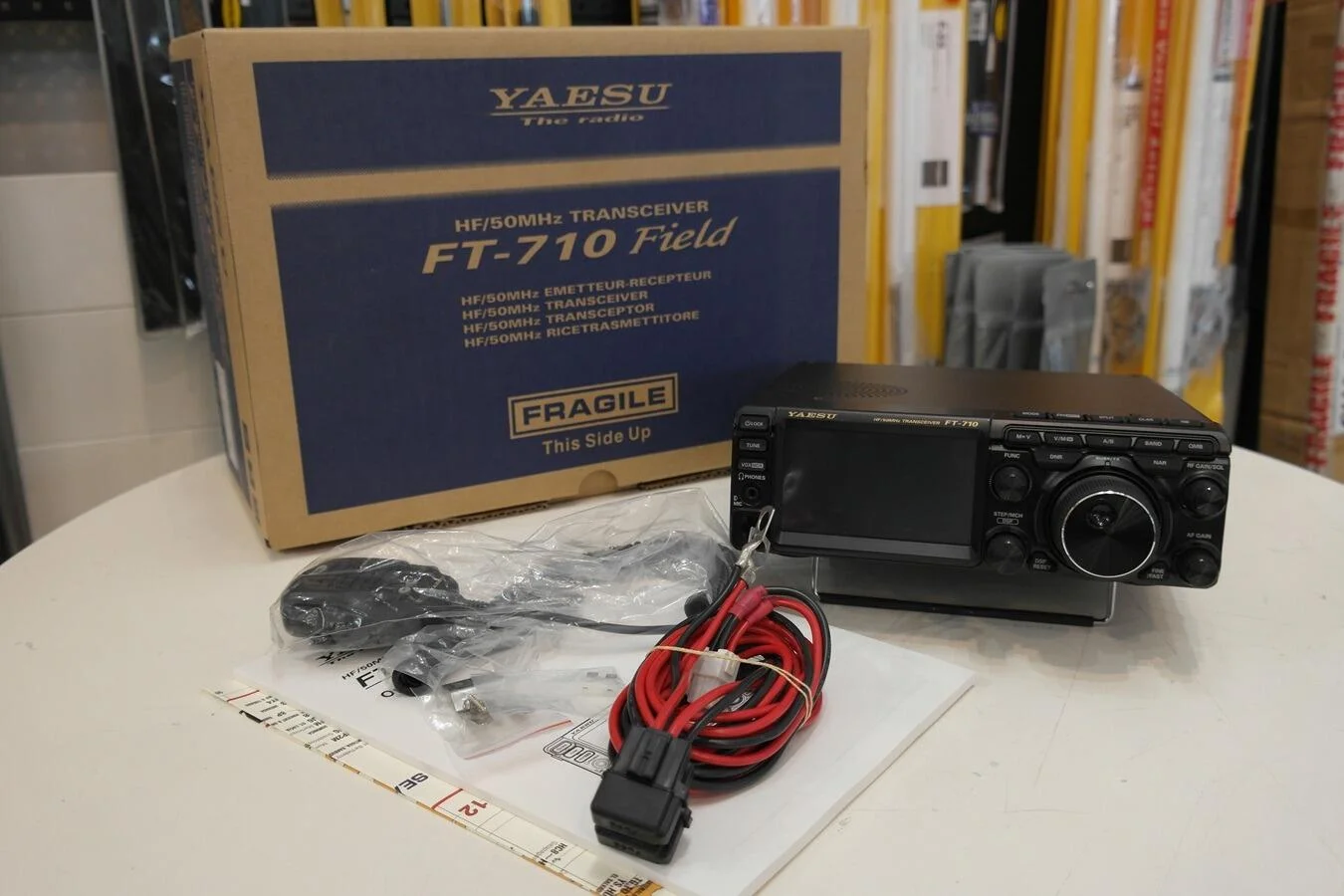

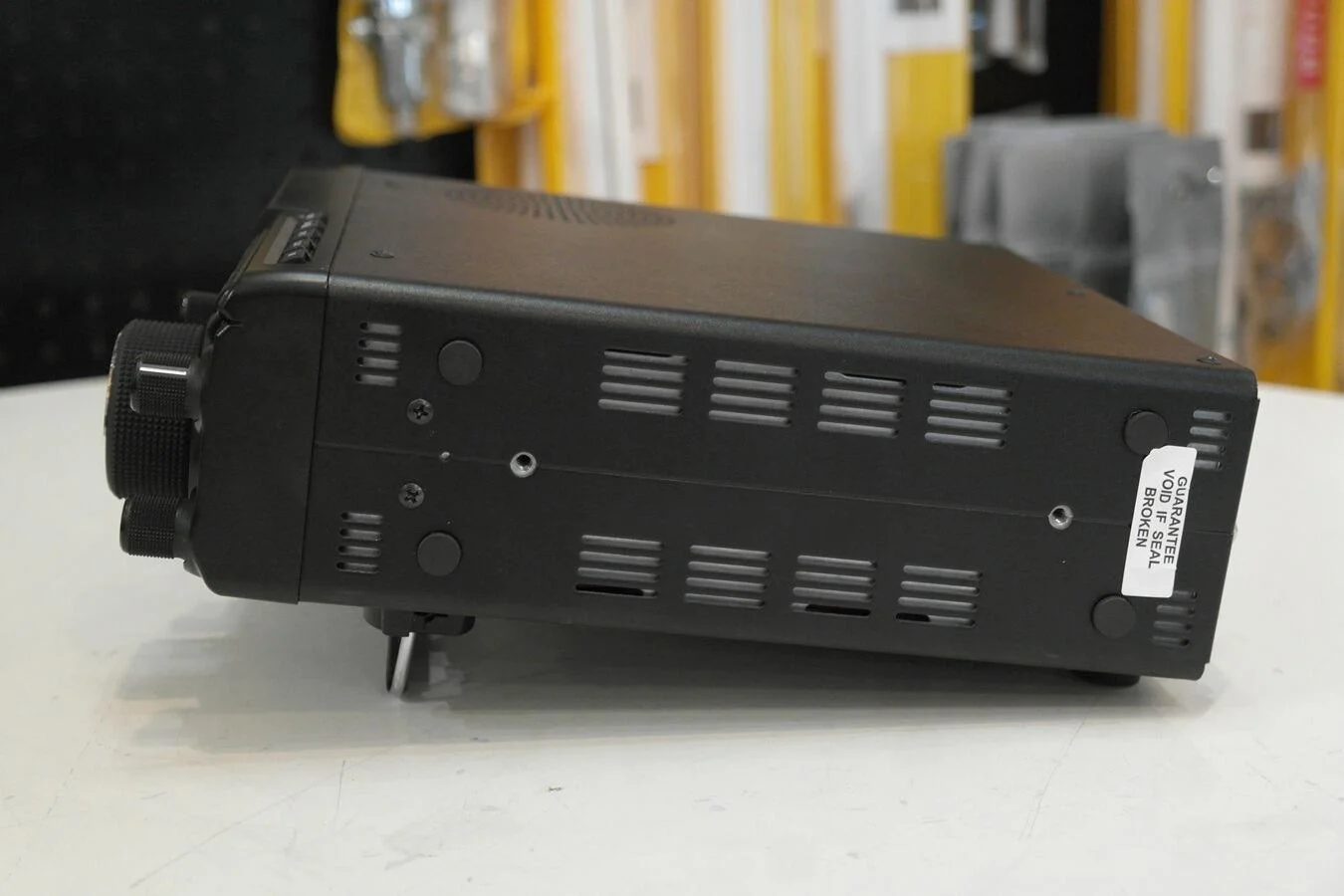

This used Yaesu FT-710 Field has been tested by RadioWorld engineers and is in excellent operational and cosmetic condition. The unit is fully operational and ready for amateur radio use.
Key Features
- HF/50/70MHz SDR Transceiver
- 100W Output Power, adjustable from 5–100W
- Hybrid SDR Architecture
- Advanced 32-bit DSP Filtering
- 5-inch Colour TFT Touchscreen
- Real-Time Spectrum Scope & Waterfall
- 3DSS Spectrum Stream & MPVD
- Built-In Automatic Antenna Tuner
- USB Connectivity
- Compact Field Edition Design
- Multiple Operating Modes
- Tested Second-Hand Unit
Yaesu ft710 Technical Specifications
- Model: Yaesu FT-710 Field
- Frequency Coverage: 1.8–54 MHz, 70 MHz (4m)
- Modes: SSB, CW, AM, FM, RTTY, PSK, Digital
- Output Power: 100W, adjustable from 5–100W
- Receiver Type: Direct Sampling SDR + DSP Filtering
- Display: 5-inch Colour TFT Touchscreen
- Spectrum Display: Real-Time Spectrum Scope & Waterfall
- Antenna Tuner: Built-In Automatic 15-Band Tuner
- Audio Output: 2W Internal Speaker, 8Ω

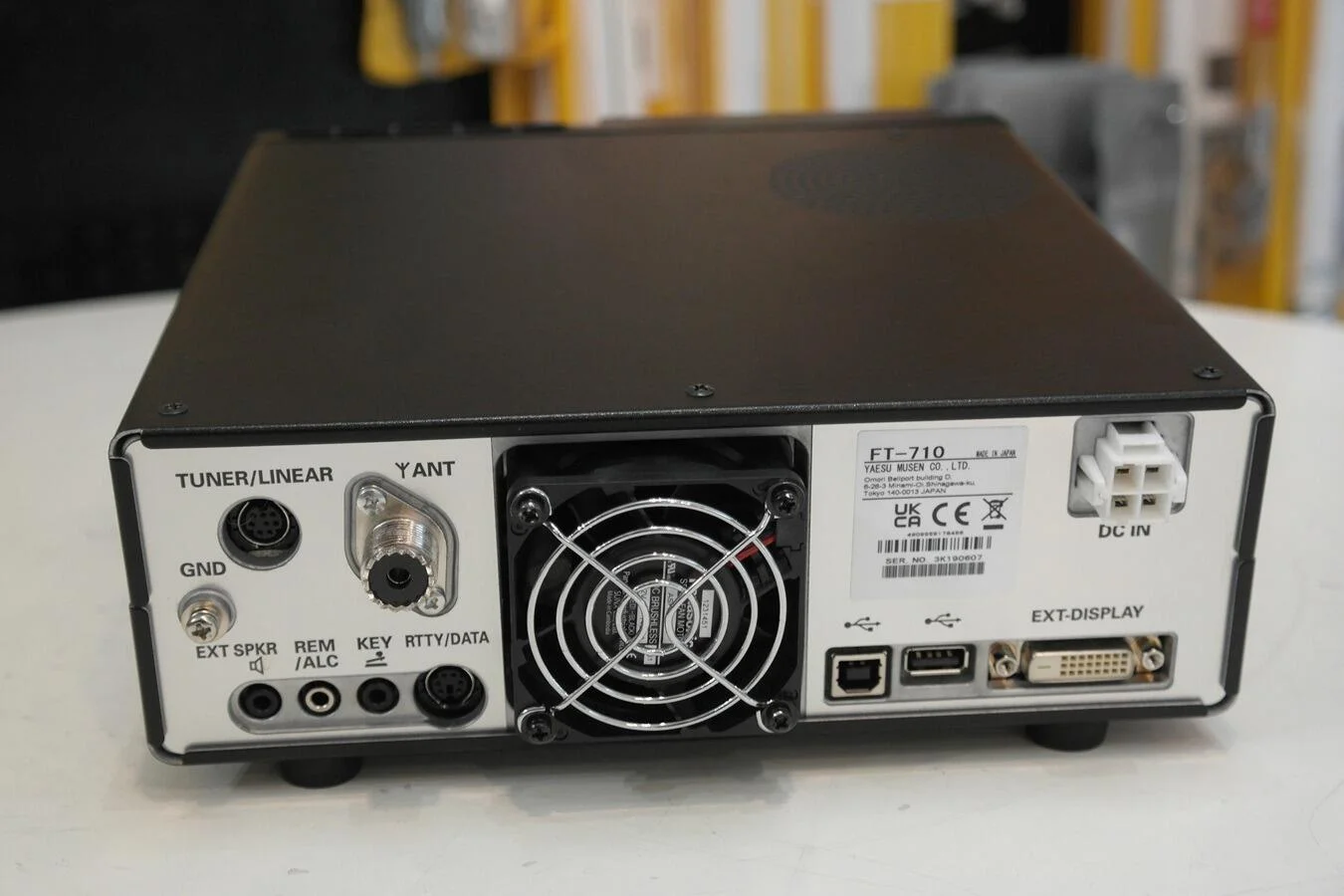

- Connectivity: USB, LAN, Key, Mic, SPK, Data Ports
- Power Supply: 13.8V DC ±10%, 22A Max
- Dimensions: 239 × 80 × 247 mm
- Weight: Approx. 4.3 kg
- Condition: Second-Hand – Tested & Fully Operational
- Manufacturer: Yaesu Musen Co. Ltd., Japan
Performance Highlights
The Yaesu FT-710 Field SDR radio combines powerful 100W output, advanced DSP technology, a high-quality touchscreen display, and convenient connectivity in a compact chassis. Its combination of portability and advanced SDR features makes it suitable for operators looking for a versatile Yaesu ham radio transceiver for home, field, and DX operations.
