Description

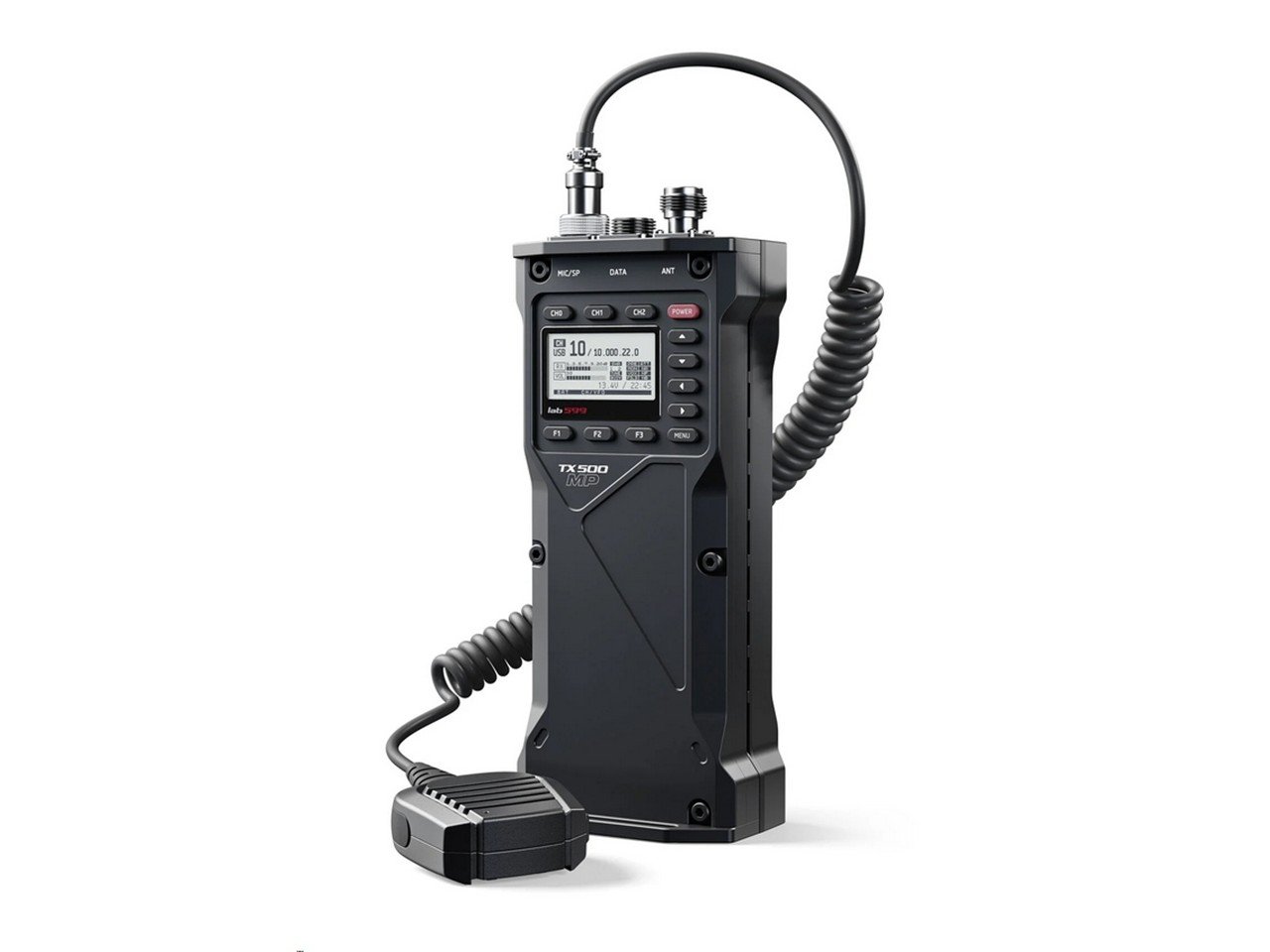

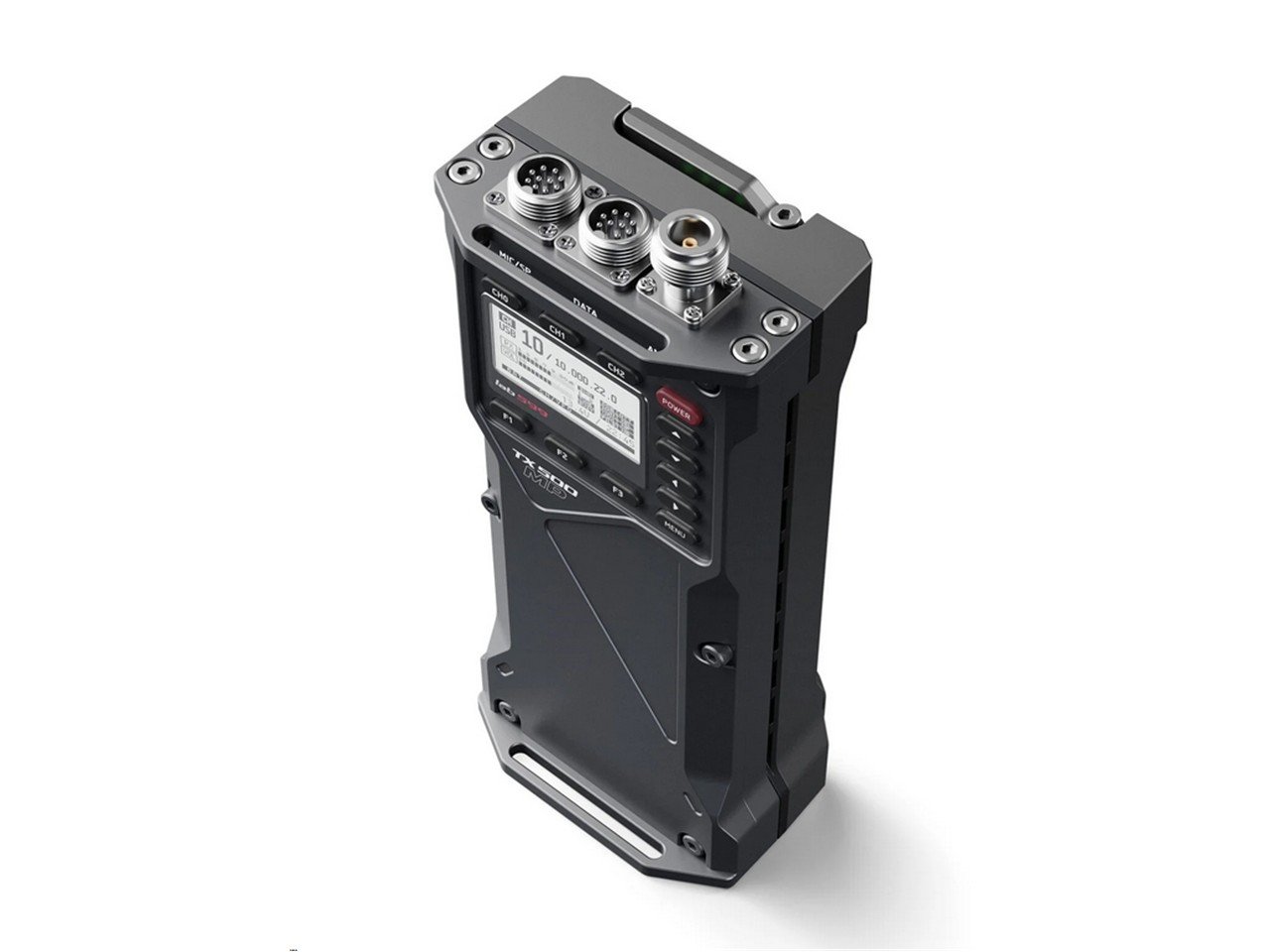

📻 TX-500MP Transceiver (Battery Option): The Ultra-Portable Manpack Radio
The TX-500MP is a compact and rugged HF/50 MHz transceiver in a manpack format, specifically designed for field professionals, tactical missions, search and rescue operations, and expeditions. Based on the proven TX-500 platform, this model incorporates an automatic antenna coupler and a battery pack for maximum autonomy and mobility.
✨ Key Features
Ultra-Robust & Waterproof: Machined from aircraft-grade aluminum, designed without through-holes to prevent dust and moisture ingress.
Record-Breaking Battery Life: Exceptionally low power consumption (as low as 100 mA in receive mode) when used with the BP-550 battery pack.
Emergency Ready: Equipped with a built-in automatic antenna tuner (ATU) for quick adaptation to any portable antenna in the field.
Ease of Use: Channel mode with pre-programmed settings via PC software, ideal for rapid deployment by all users.
🔌 Key Features
Frequency Range: 0.5 to 56.0 MHz (Continuous Reception) / Transmit 1 to 30 MHz and 45 to 56 MHz.
Output Power: Adjustable from 1 to 10 W (HF) and 1 to 7 W (50 MHz).
Supported Modes: SSB, CW, AM, FM, DIG (Digital Modes).
Signal Processing: High-performance 32-bit DSP processor with impulse noise reduction and digital filters.
Memory: 100 programmable channels (frequency, modulation, etc.).
Ultra-Lightweight Design: Only 0.55 kg (without battery) and 1.18 kg with the complete battery pack. High-contrast monochrome LCD screen.
📦 Package Contents
Portable speakerphone (HSM-500-GX16)
Power/Data/CW Adapter (AD-511)
CAT-USB Adapter (AD-502)
Power Cable (AD-504)

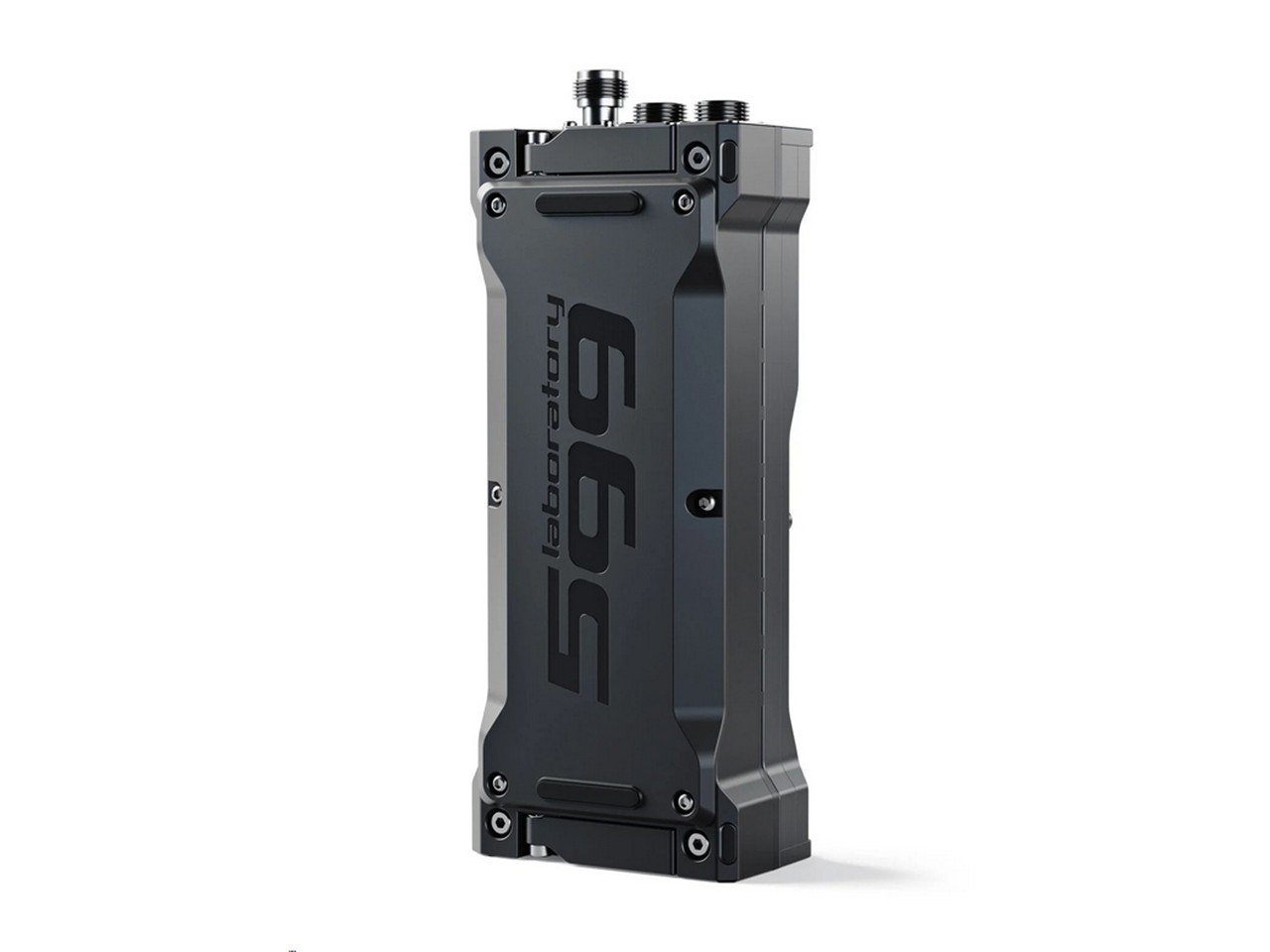

BP-550 External Battery Pack (cells/batteries not included)
USB-C Cable (C-C)
