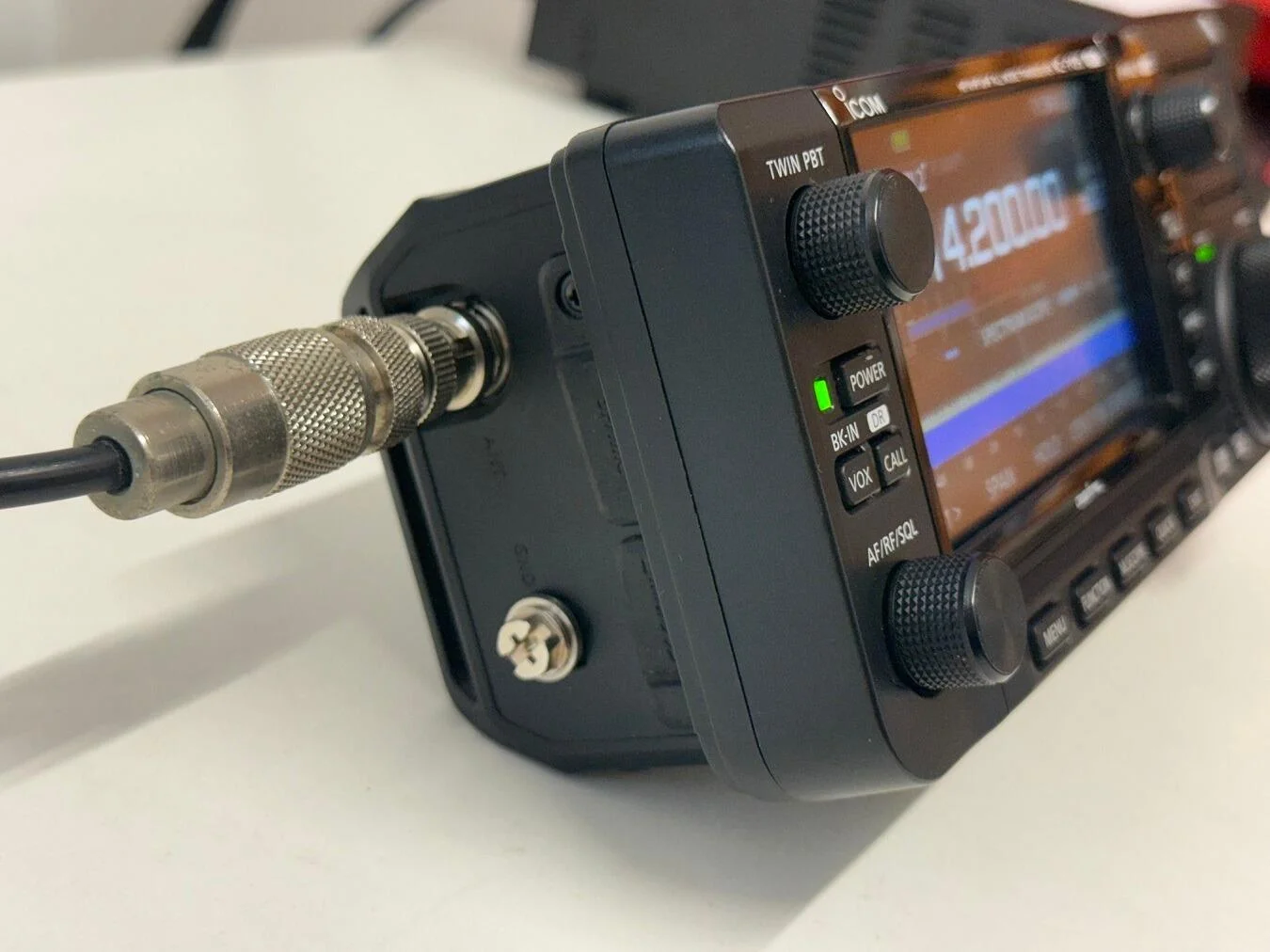

USED ICOM IC-705 HF/VHF/UHF QRP TRANSCEIVER
The Icom IC705 is a compact and versatile portable amateur radio transceiver designed for operators who want HF, VHF, and UHF capabilities in a lightweight, easy-to-carry package. Covering HF, 50MHz, 144MHz, and 430MHz, the IC-705 supports a wide range of amateur radio activities, including portable operation, field communications, DXing, digital modes, and D-STAR.
Combining advanced SDR technology with a high-resolution touchscreen interface, the Icom IC-705 provides many of the features found in larger Icom transceivers while maintaining a compact portable design. Its small size and lightweight construction make it particularly suitable for operators who enjoy taking their ham radio equipment outdoors.
HF, VHF and UHF Multi-Band Operation
The IC-705 provides broad frequency coverage across HF, 50MHz, 144MHz, and 430MHz, allowing operators to access multiple amateur radio bands from a single portable transceiver.
It supports a variety of operating modes, including SSB, CW, AM, FM, and D-STAR, giving operators flexibility for different types of amateur radio communication.
Whether used for portable HF operation, local VHF/UHF communication, digital radio, or D-STAR, the IC-705 provides a flexible solution in a compact format.
Advanced SDR Technology
The Icom IC-705 uses an RF direct sampling system derived from Icom’s advanced SDR technology. This architecture helps provide high-quality signal processing while reducing distortion.
A major benefit for operators is the built-in real-time spectrum scope and waterfall display. These features allow users to visually monitor activity across the band, identify signals, and quickly locate operating frequencies.
This makes the IC-705 particularly useful when operating in busy band conditions or when searching for available signals during portable activities.

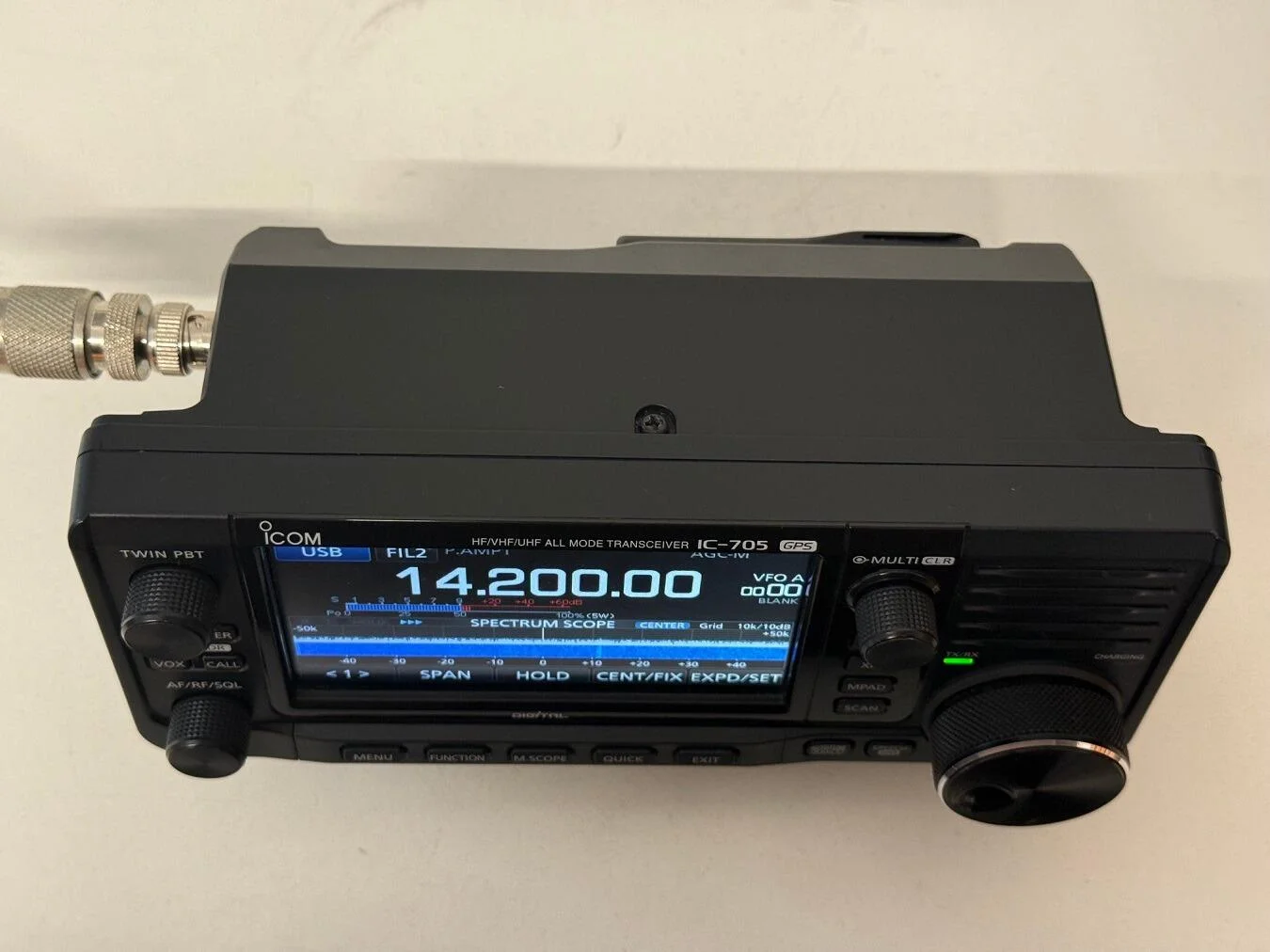

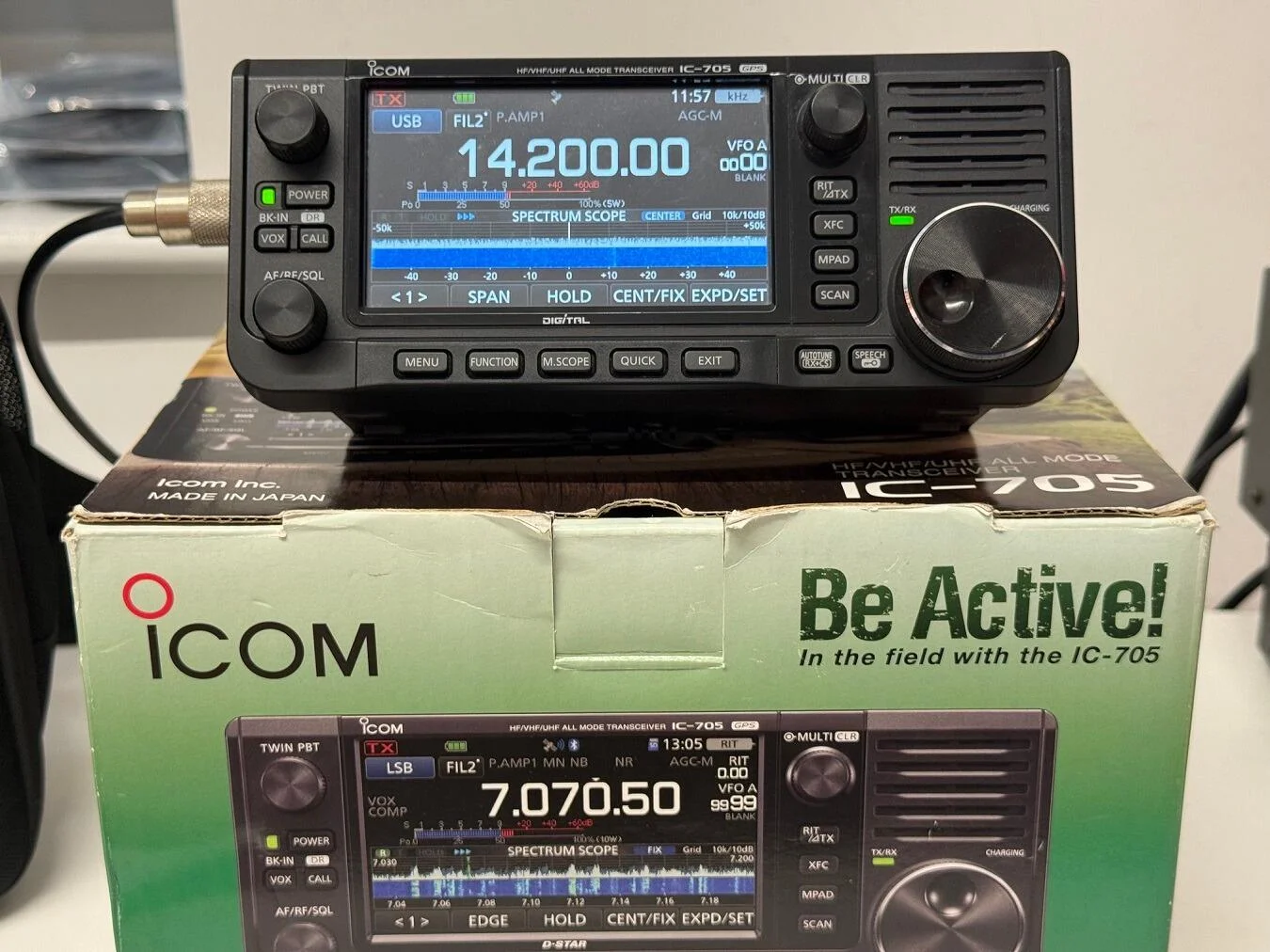

4.3-Inch Colour Touchscreen
The 4.3-inch colour touchscreen provides an intuitive interface for controlling the transceiver and viewing operating information. The display is designed to make frequency selection, mode changes, spectrum monitoring, and other radio functions easier to manage.
The touchscreen interface is similar in concept to the displays used on other popular Icom SDR transceivers, providing a familiar operating experience for Icom users.
Compact and Portable Design
Portability is one of the defining characteristics of the Icom IC-705. Measuring approximately 20 cm in width and weighing around 1.1 kg, the transceiver is compact enough to carry comfortably and operate in the field.
Its lightweight design makes it suitable for portable amateur radio activities such as outdoor operating, field days, temporary stations, and other situations where carrying a full-size base station is impractical.
QRP Portable Operation

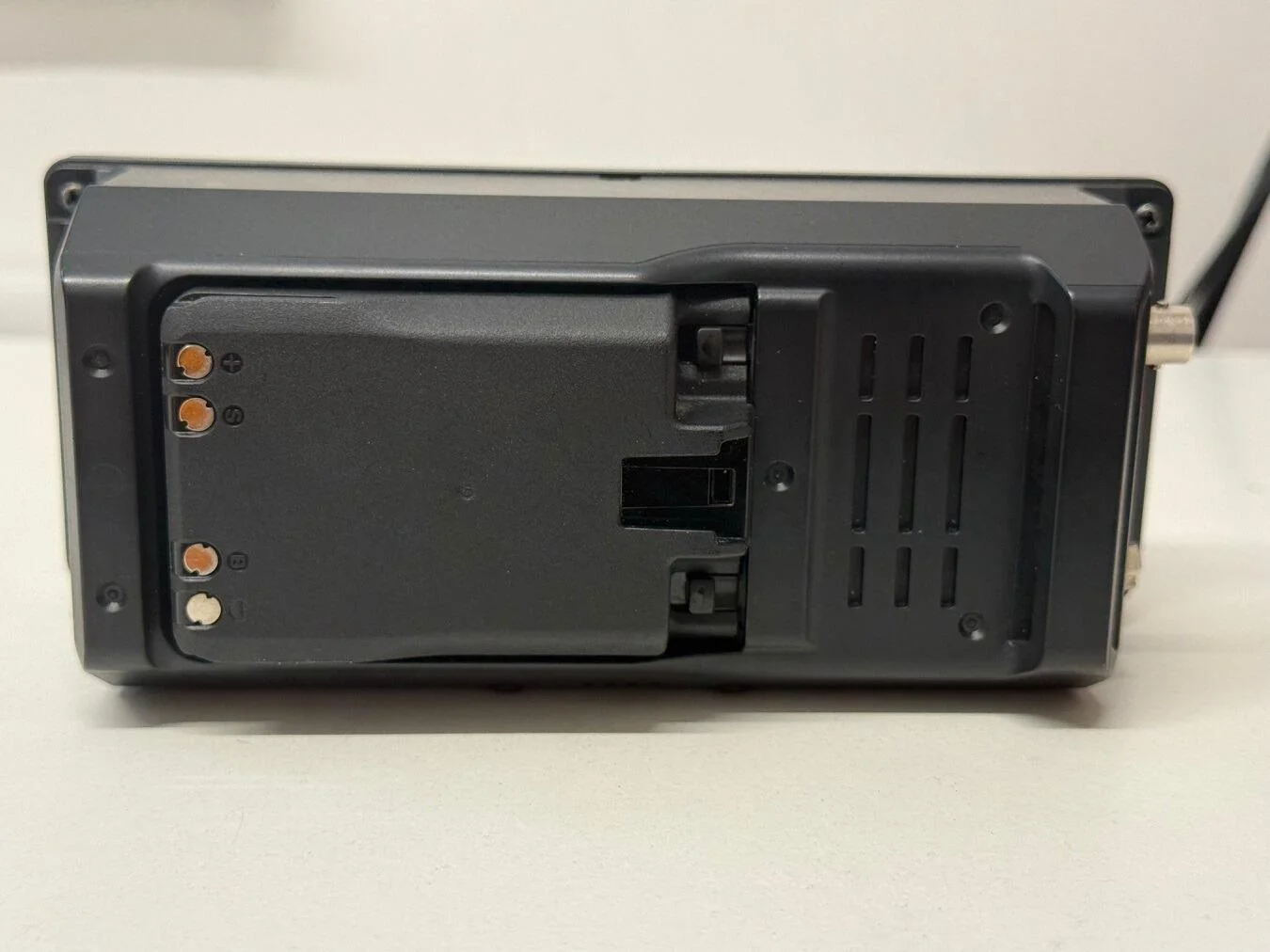

The IC-705 is designed with portable QRP operation in mind. When powered by the BP-272 Li-ion battery pack, the radio provides up to 5W output in portable operation.

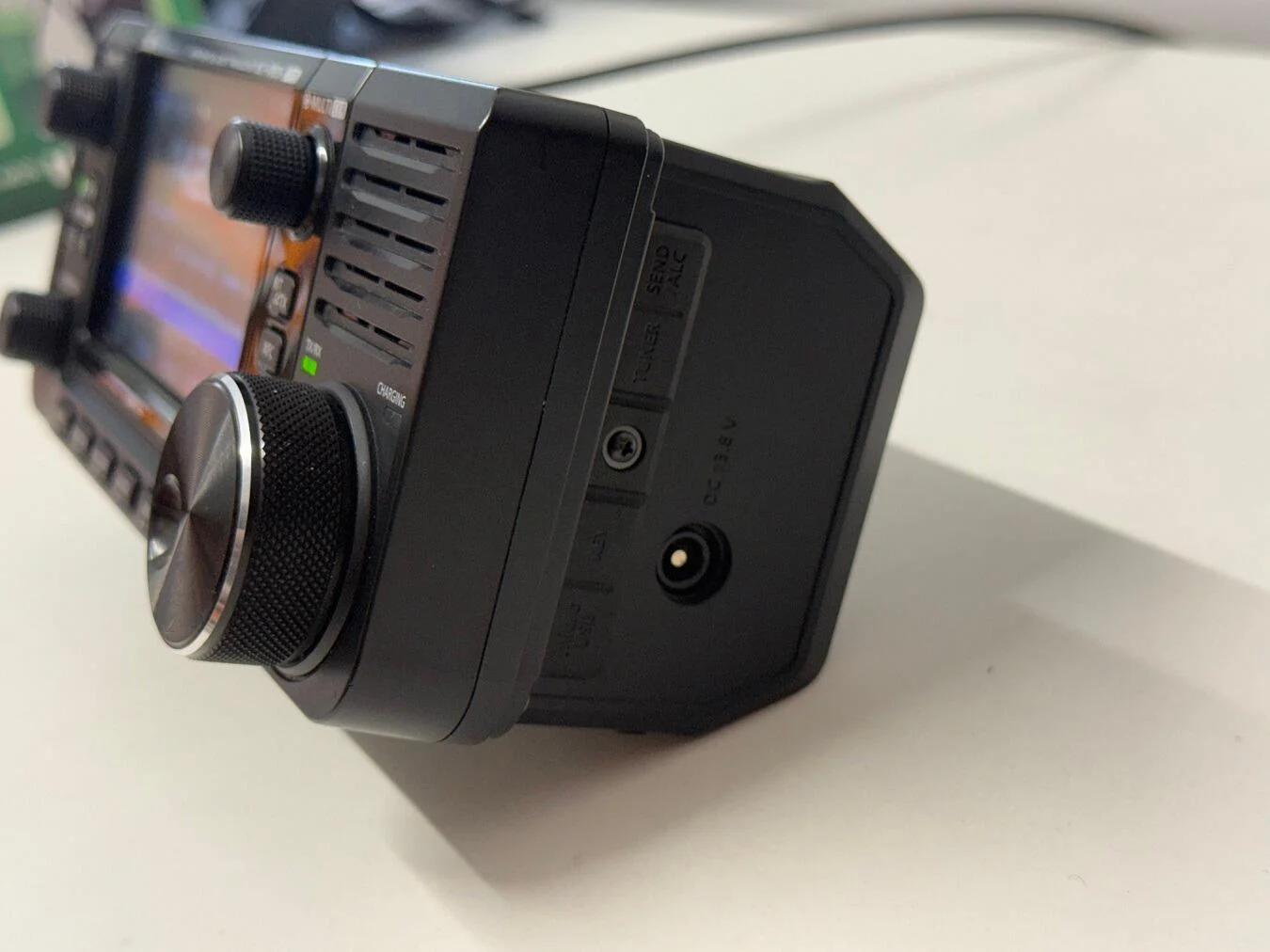

For extended operation, the IC-705 can also be connected to a 13.8V DC power source, allowing output power of up to 10W according to the supplied specification.
This flexibility allows operators to choose between lightweight battery-powered operation and higher-output operation from an external DC power supply.
Built-In Wi-Fi and Bluetooth
The IC-705 includes WLAN and Bluetooth connectivity, providing additional flexibility for modern amateur radio setups.
Wireless connectivity can be useful for remote control applications and compatible accessories, reducing the need for additional physical connections when operating in the field.
IC 705 Built-In GPS
A built-in GPS receiver adds useful functionality for portable operators. GPS information can be used for location logging and other supported radio functions, including searching for nearby repeaters.
For operators who regularly travel with their radio, built-in GPS can make portable operation more convenient without requiring a separate GPS device.
D-STAR Digital Radio
The Icom IC-705 supports Icom’s D-STAR digital amateur radio system. This allows operators to take advantage of compatible D-STAR networks and digital voice communication.
Combined with HF, VHF, and UHF coverage, D-STAR support gives the IC-705 additional versatility for operators interested in both traditional analogue and digital amateur radio.
microSD and USB Connectivity
The transceiver includes a microSD card slot for supported data storage functions and a micro USB port for charging and rig-control applications.
These connections provide useful options for managing radio data and integrating the IC-705 with compatible equipment and operating setups.

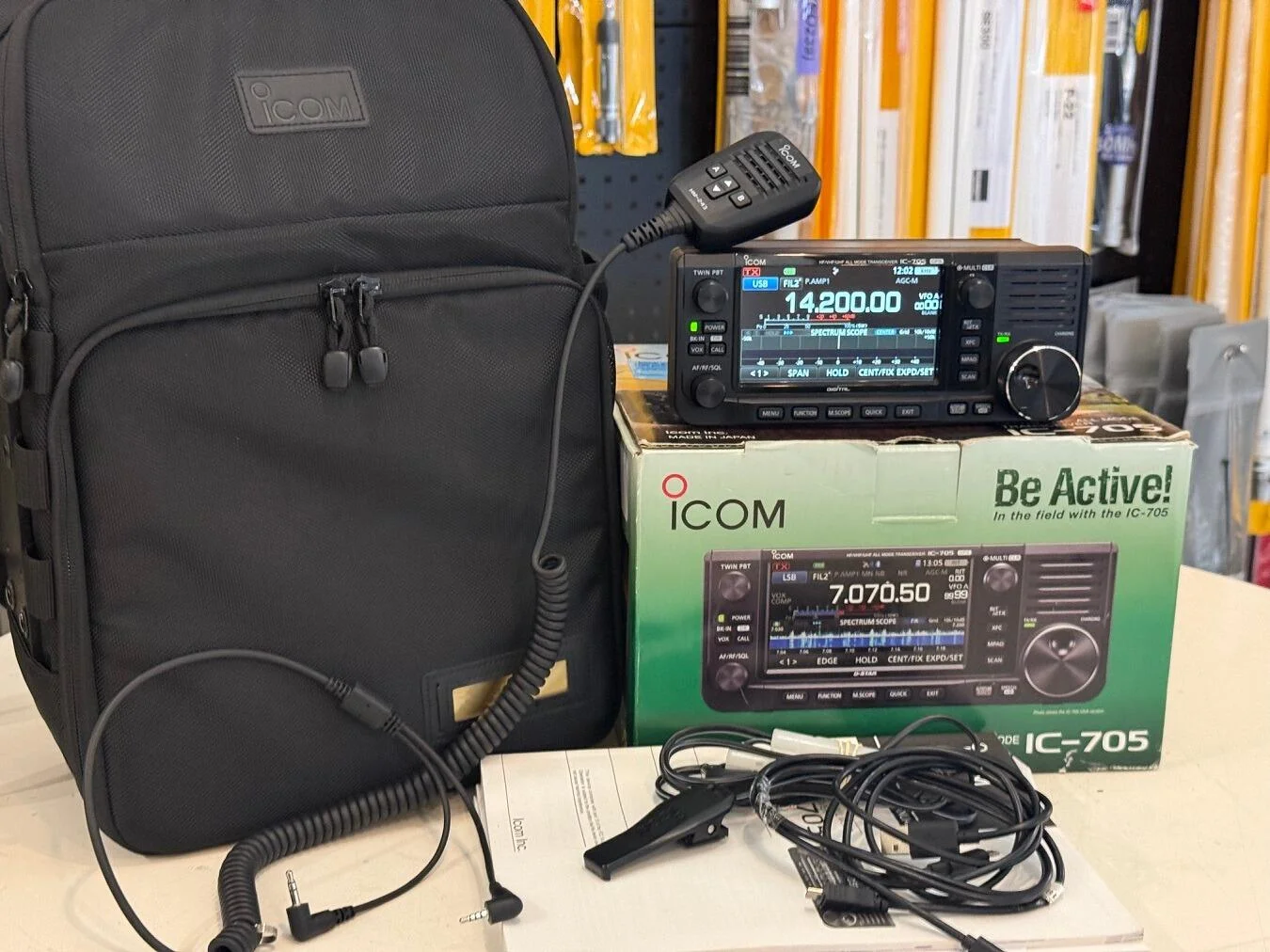

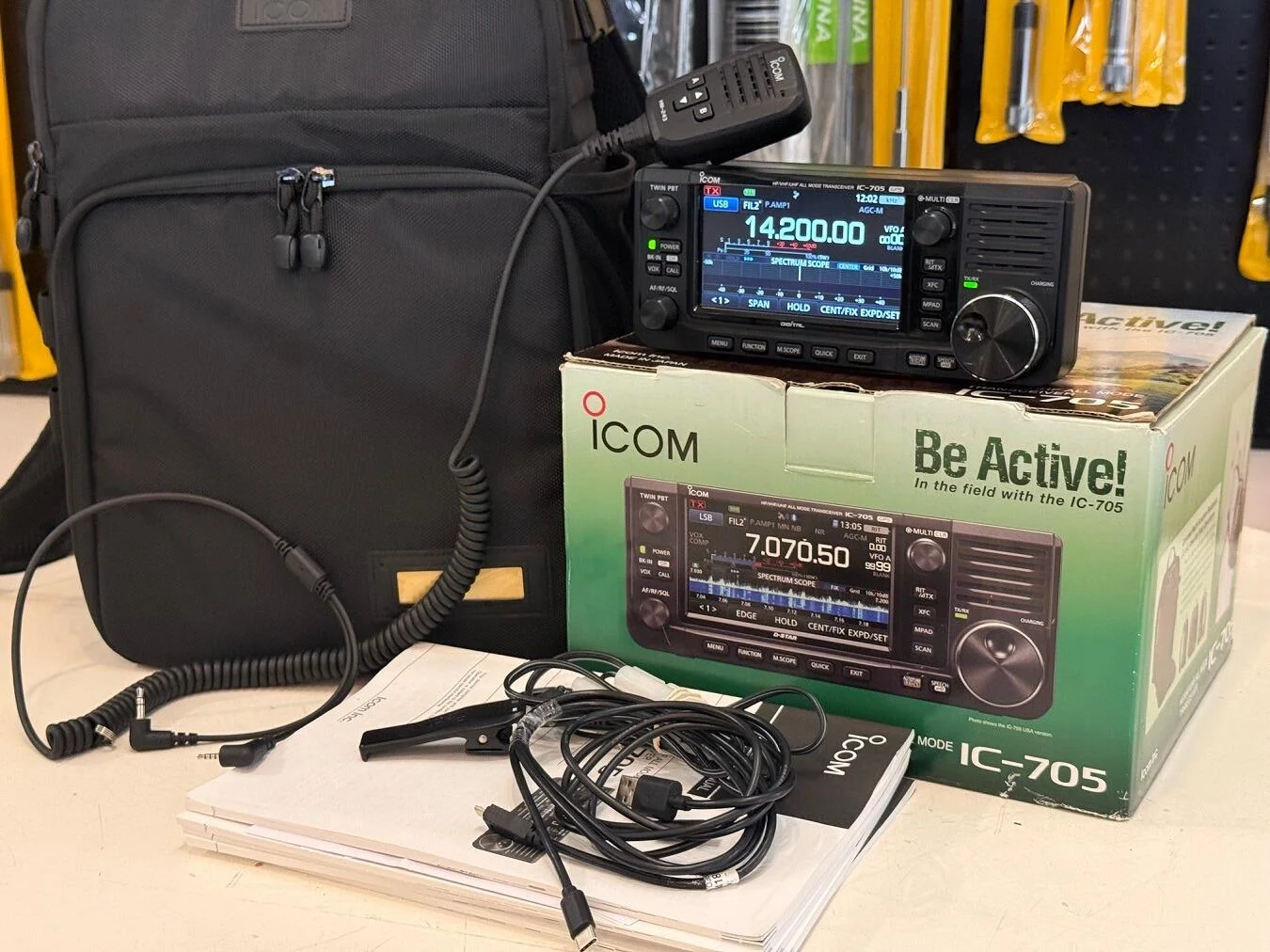

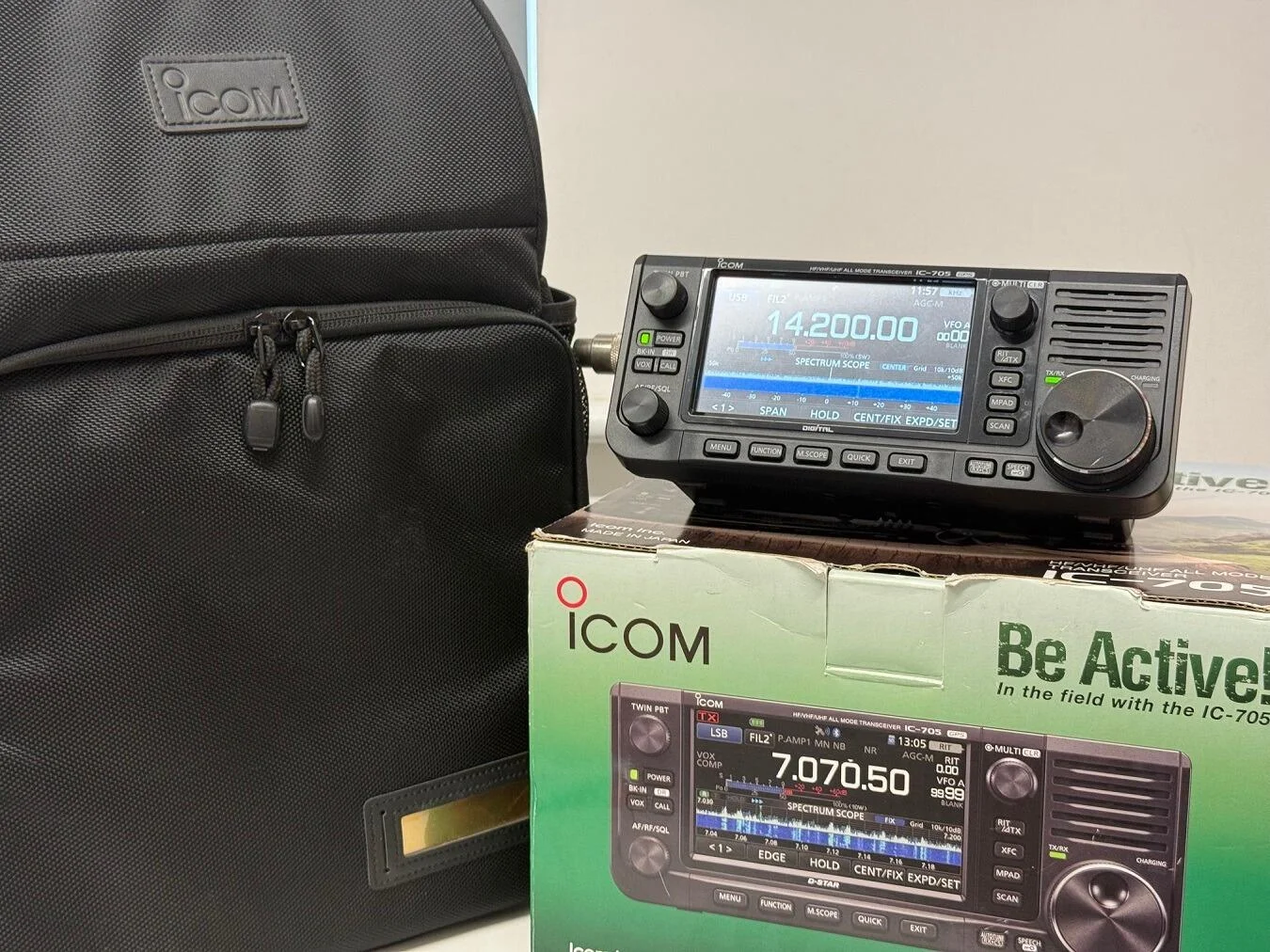

Optional LC-192 Backpack
For operators who want a dedicated portable carrying solution, the optional LC-192 backpack is designed to accommodate the IC-705 and associated accessories.
The backpack provides a convenient way to transport the radio and supporting equipment when travelling to a portable operating location.
IC 705 Key Features
- Icom IC 705 portable transceiver
- HF, 50MHz, 144MHz and 430MHz coverage
- HF/VHF/UHF amateur radio operation
- SSB, CW, AM, FM and D-STAR modes
- RF direct sampling SDR technology
- Real-time spectrum scope
- Waterfall display
- 4.3-inch colour touchscreen
- Approx. 1.1 kg lightweight design
- BP-272 Li-ion battery support
- Up to 5W battery-powered output
- Up to 10W with 13.8V DC power
- Built-in WLAN/Wi-Fi
- Bluetooth connectivity
- Built-in GPS
- microSD card slot
- micro USB connectivity
- D-STAR support
- Portable and field-friendly design
- Optional LC-192 backpack compatibility
Ideal for Portable Amateur Radio
The Icom IC-705 is particularly well suited to amateur radio operators who want a lightweight transceiver that can cover multiple bands without sacrificing modern operating features.
Its combination of HF, VHF, UHF, SDR technology, touchscreen controls, spectrum scope, waterfall display, GPS, Bluetooth, WLAN, and D-STAR makes it a highly versatile option for portable and field operation.
It can be used for outdoor amateur radio, field days, portable DXing, digital communication, repeater operation, and general multi-band radio activities.
Icom IC-705 for Sale
If you are looking for an Icom IC-705 for sale, this compact HF/VHF/UHF QRP transceiver provides a flexible solution for portable amateur radio operation. Its lightweight design, advanced SDR architecture, touchscreen interface, multiple operating modes, and wireless connectivity make it suitable for both experienced operators and enthusiasts looking for a capable portable station.
The Icom IC-705 combines the convenience of a portable radio with advanced features normally associated with larger amateur radio equipment, making it an excellent choice for operators who value mobility and multi-band operation.
